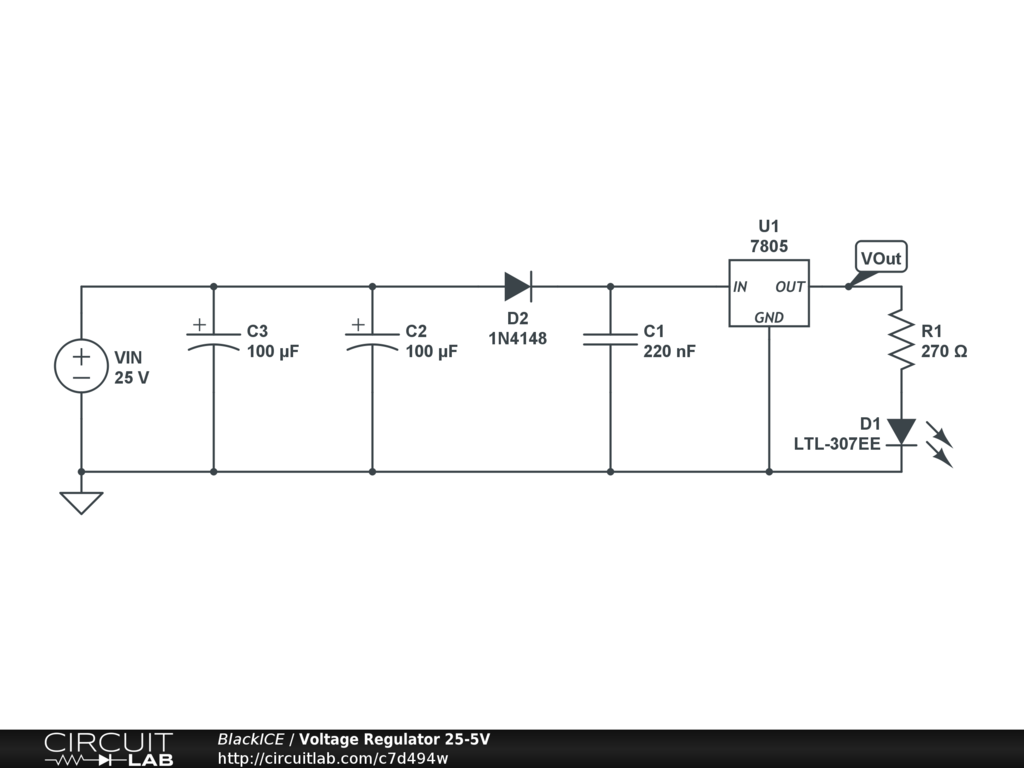

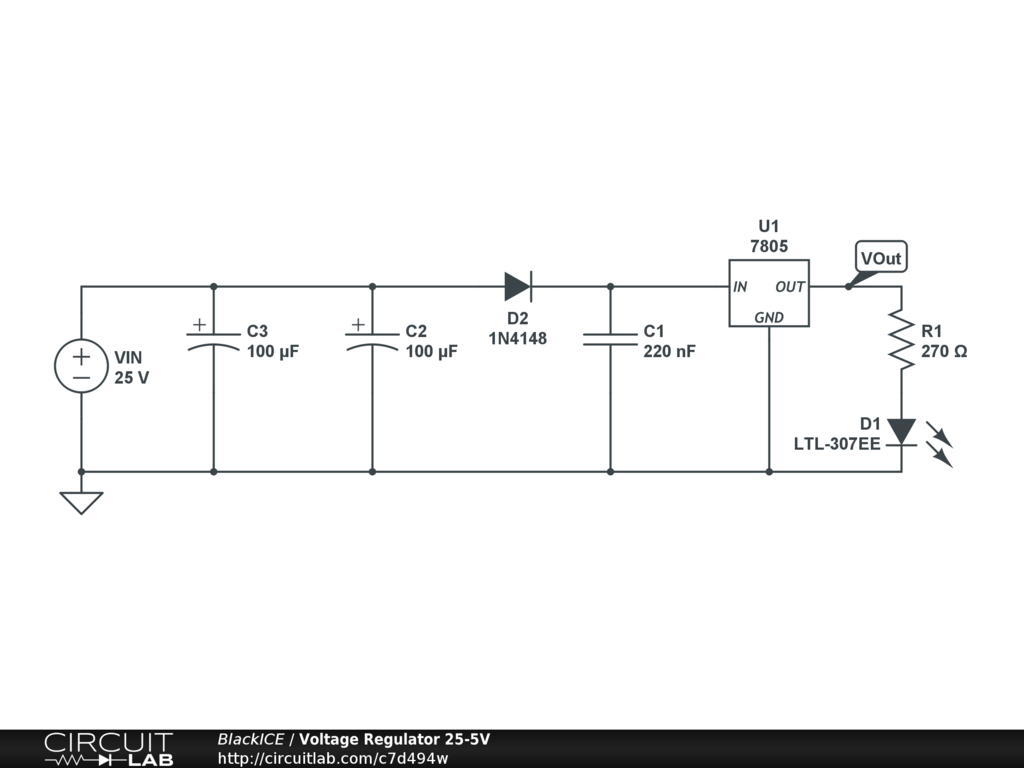

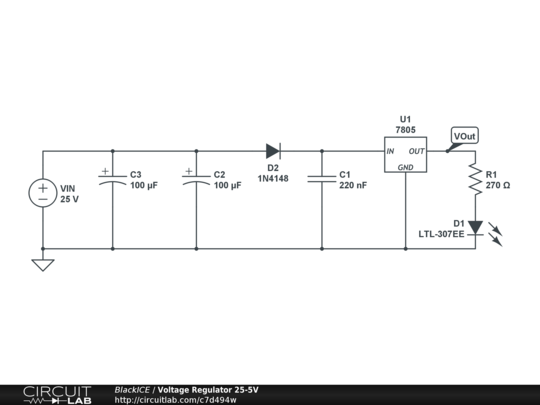

Voltage regulator accepts up to 25V and outputs 5V (C3 and C2 should be 100uF/25V)

R1 and D1 are only to show if there is power
