Crystal quartz clock equivalent circuit

Created by	sakari-lukkarinen
Created	January 31, 2014
Last modified	January 31, 2014
Tags	No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

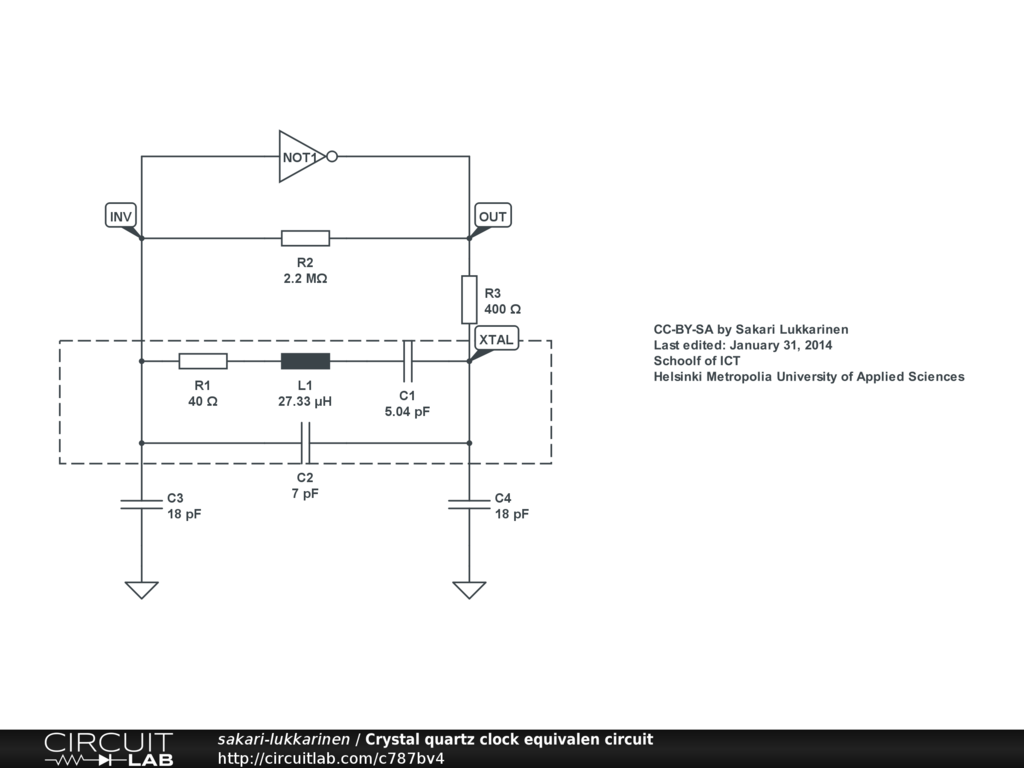

Crystal quartz clock equivalent circuit model. Takes several dozens of microseconds to stabilize. The values for shunt capacitor (7 pF) and load capacitances taken (18 pF) from the data sheet [2]. The resonant frequency shoud be 13.56 MHz. Value for L1 and C1 calculated based on the equivalent circuit analysis [1].

References:

[1]. Equivalent circuit of crystal resonator. TXC Corporation. Accessed 31.1.2014. http://www.txccorp.com/en/d_support/01.html

[2]. Product datasheet. TXC Corporation. Accessed 31.1.2014. http://www.txccorp.com/download/products/c/9B_c.pdf
