ODROID-UART level shifter

Created by	TheBigB
Created	January 17, 2015
Last modified	January 17, 2015
Tags	arduino level-shifting odroid uart

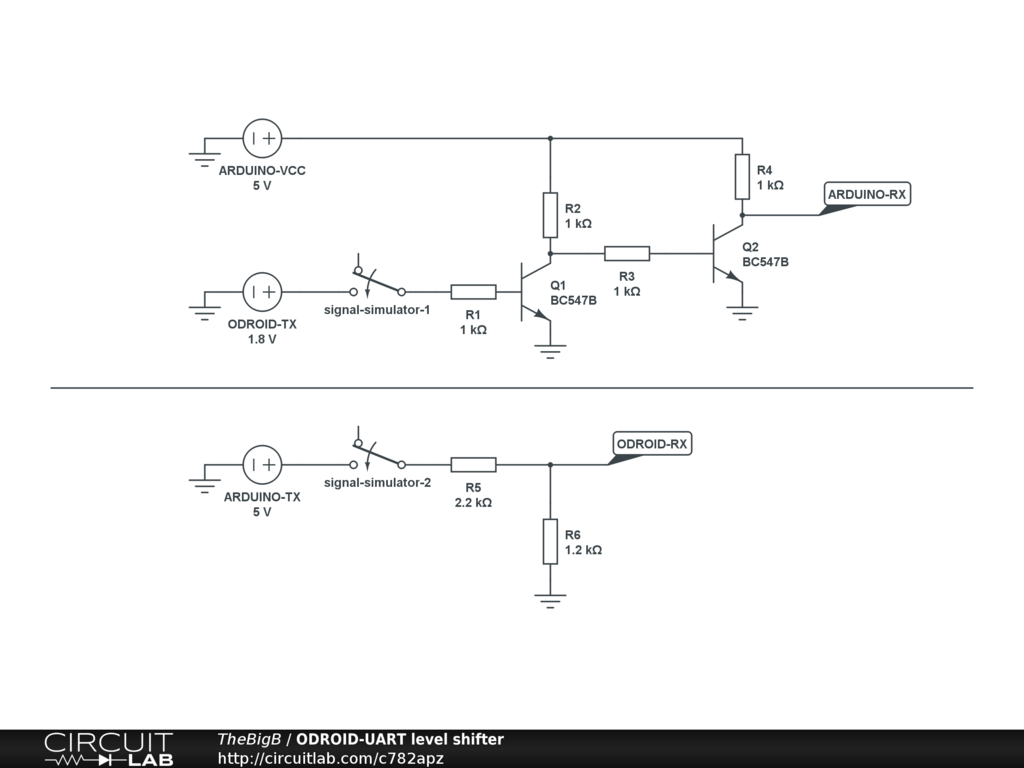

As designed by Jean-Damien (http://blog.sunyday.net/?p=36), a poor man's level shifter to wire up ODROID devices with an Arduino
