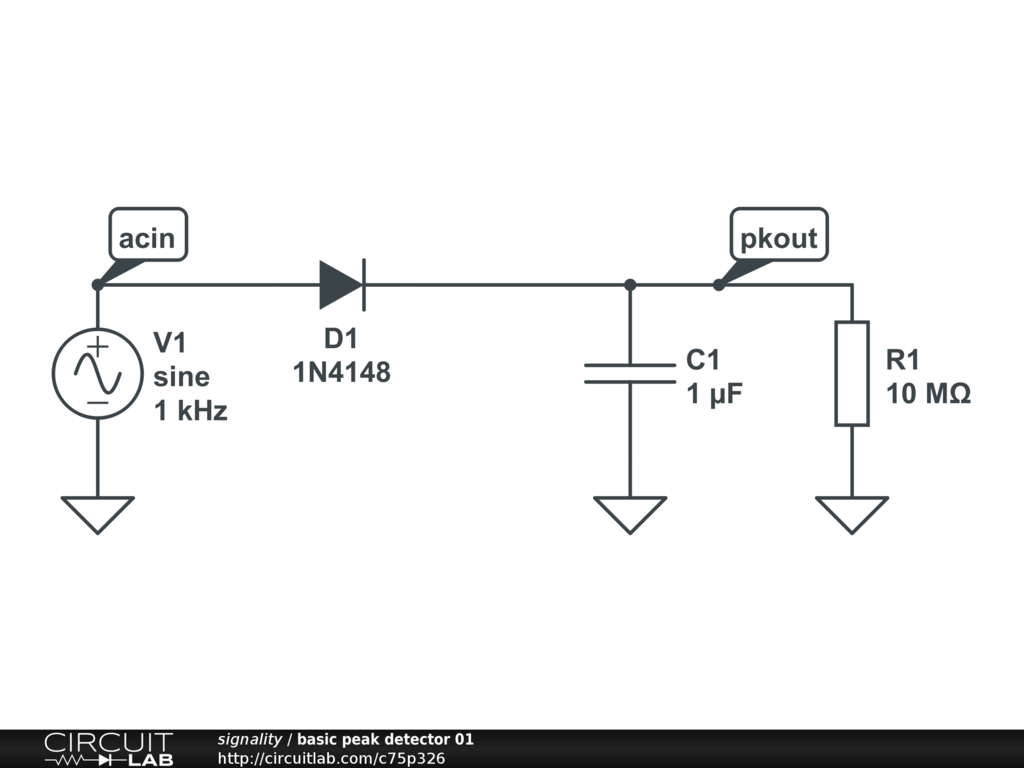

basic peak detector 01

If you don't need precision or don't have to deal with small signals then this works fine.

F5 to simulate.
