Bright LED module driver

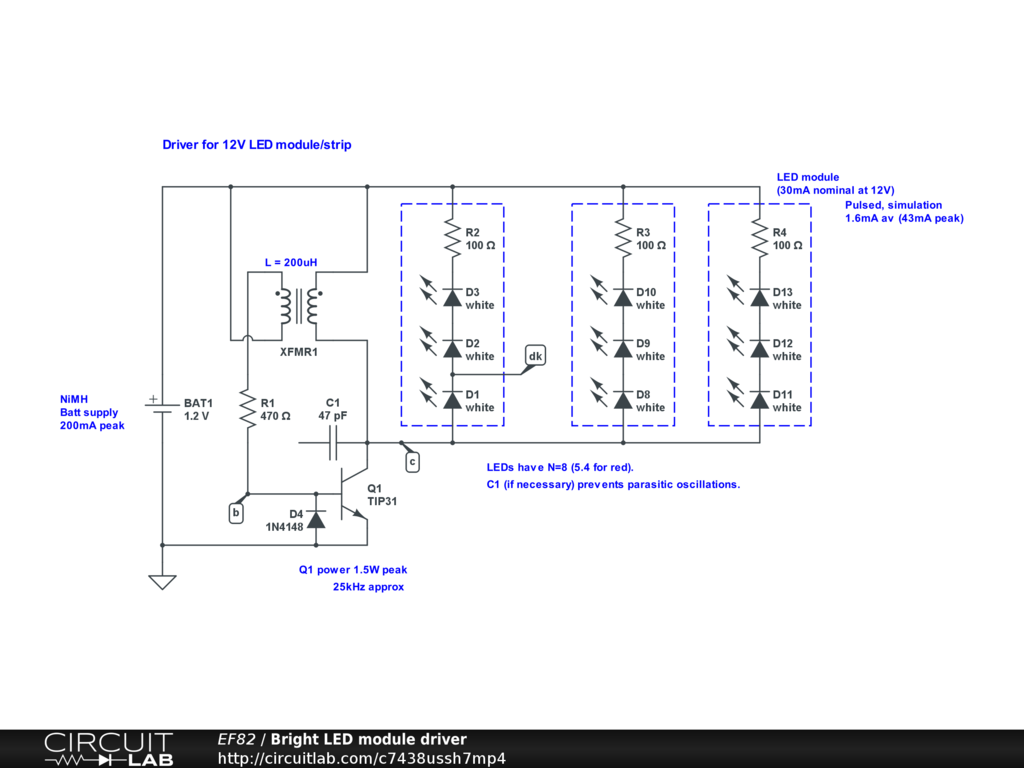

Exploring a driver for high brightness LED module/strip, using DC-DC booster.
