Schmitt Trigger

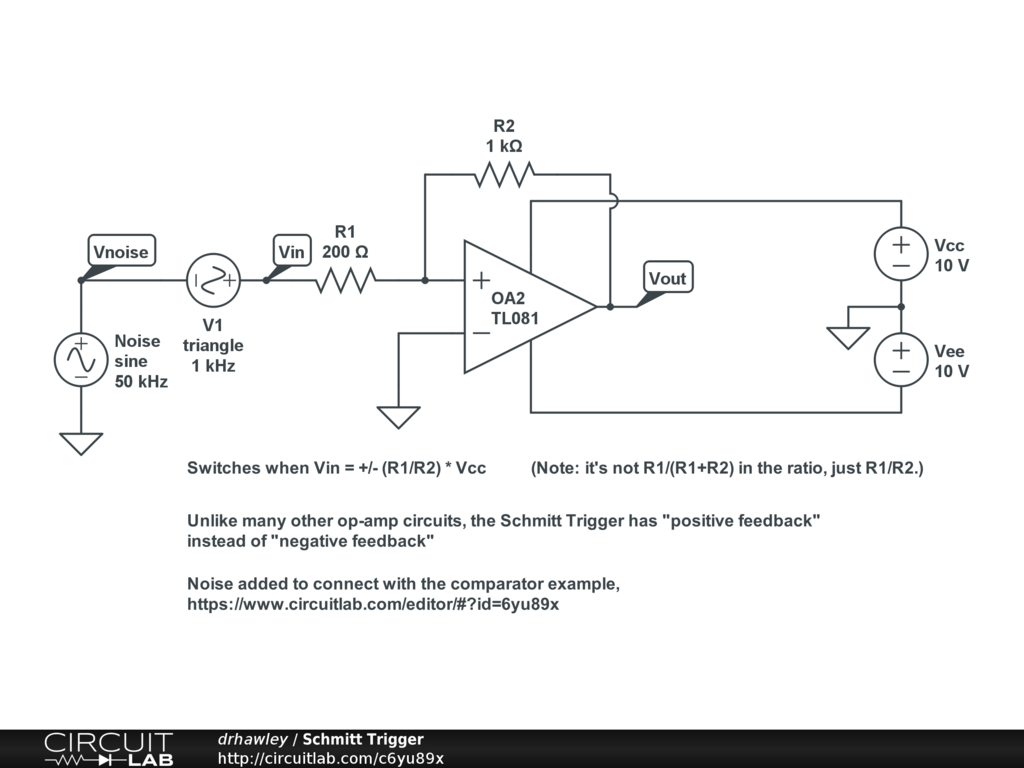

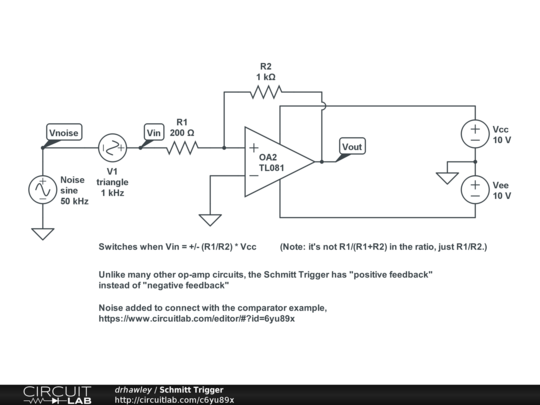

Basic (non-inverting) Schmitt Trigger circuit, which is like a comparator but with separate voltages for switching HI vs LOW.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

An "improved comparator", more tolerant to noise than a standard comparator ( https://www.circuitlab.com/editor/#?id=6yu89x )
