Triangle oscillator PUBLIC

Created by
Created May 09, 2013
Last modified May 09, 2013
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

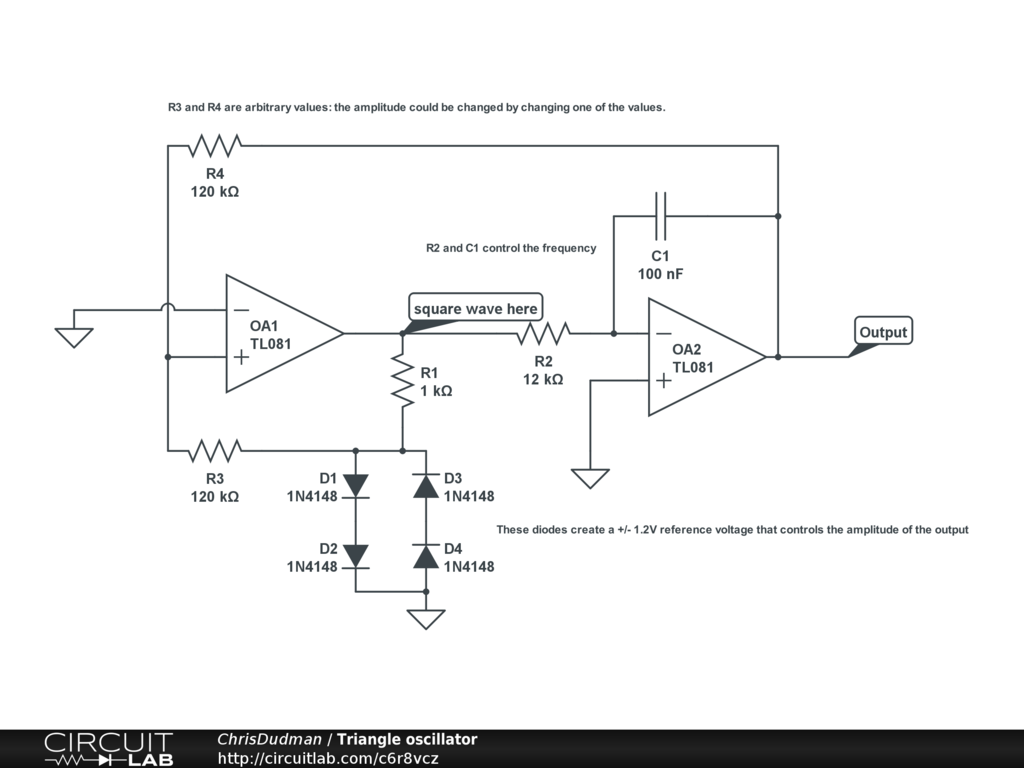

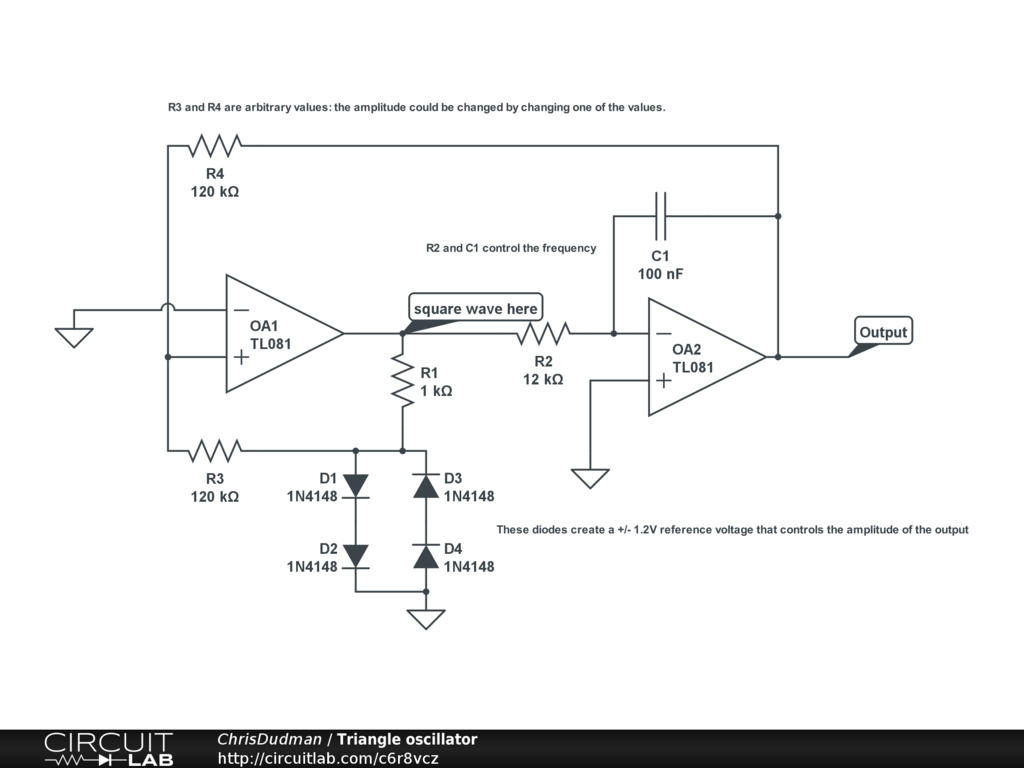

Triangle waveform generator at fixed frequency (952 Hz experimentally) and fixed amplitude (1.2V)
