Voltage Regulator Circuit

Created by	SolX2010
Created	August 18, 2013
Last modified	September 27, 2013
Tags	gdb gravity-development-board ir3801mtrpbf sol-x solar-system-express

Summary

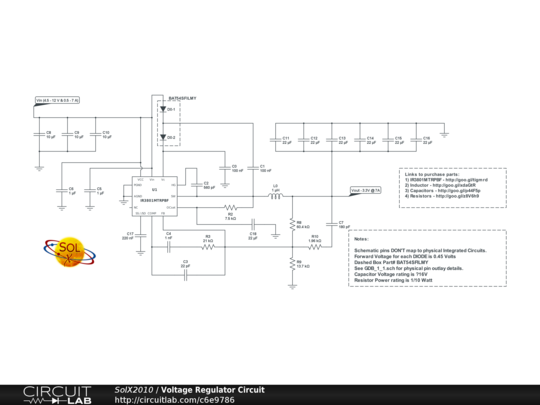

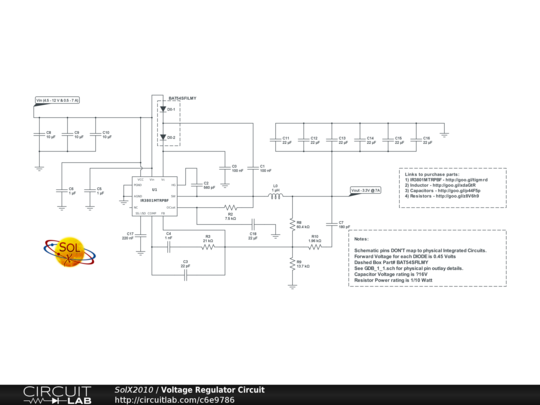

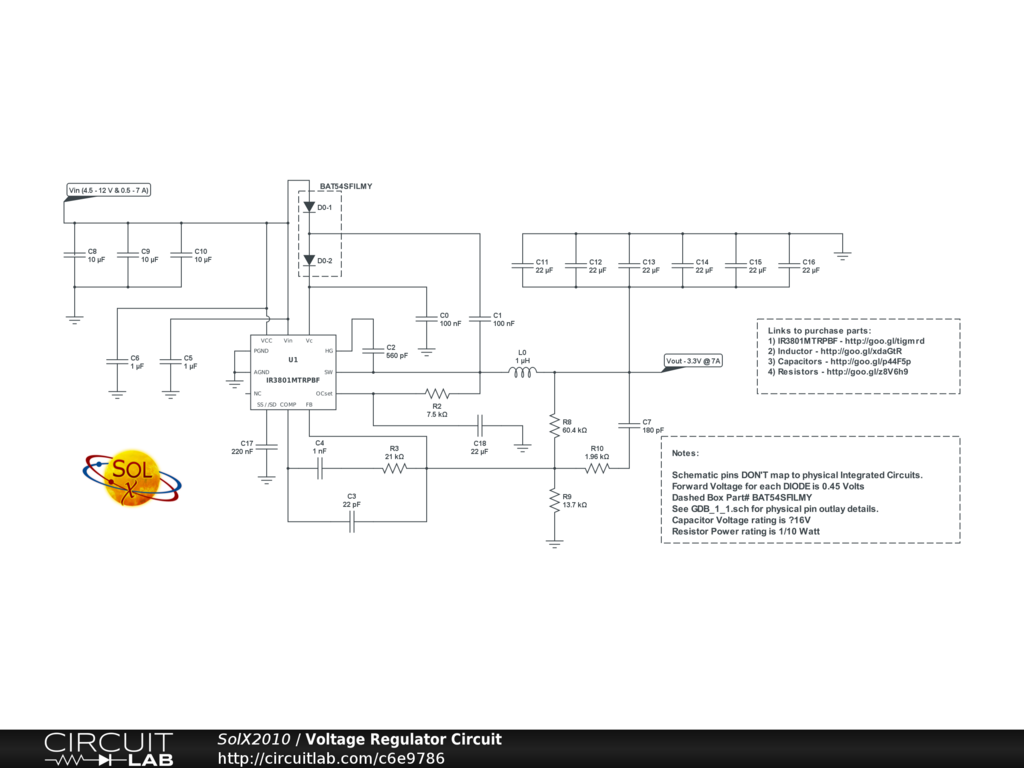

Gravity Development Board input voltage regulator to enable the use input voltages sources of 4.5 to 12 Volts at 0.5 to 7 Amps.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

Description

The Gravity Development Board's input voltage regulator (Part# IR3801MTRPBF) enables the Gravity Development Board to be powered by a larger input voltage ranges (4.5 to 12 V) and/or less stable input voltage source (like TASC solar cells) than the Ardunio and Rapsberry Pi. The IR3801MTRPBF is an easy-to-use, fully integrated and highly efficient Synchronous Buck DC/DC regulator.
