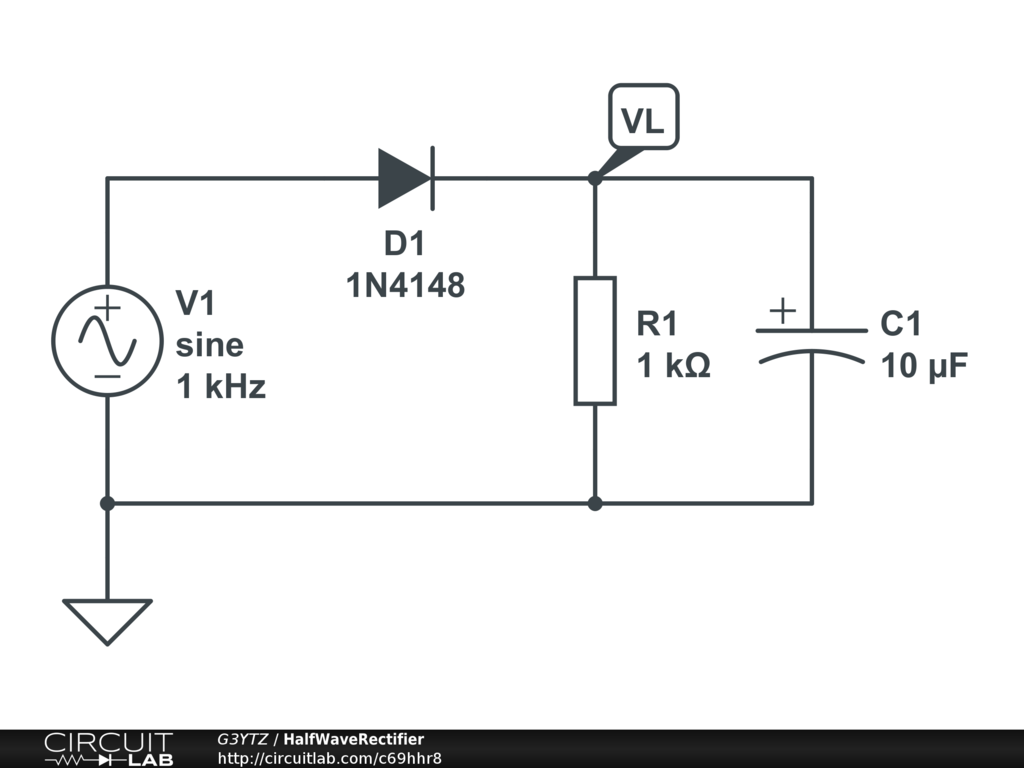

Half wave rectifier with RC smoothing filter. Try different values of R and C to see the effect of smoothing. The diode current is also plotted.
