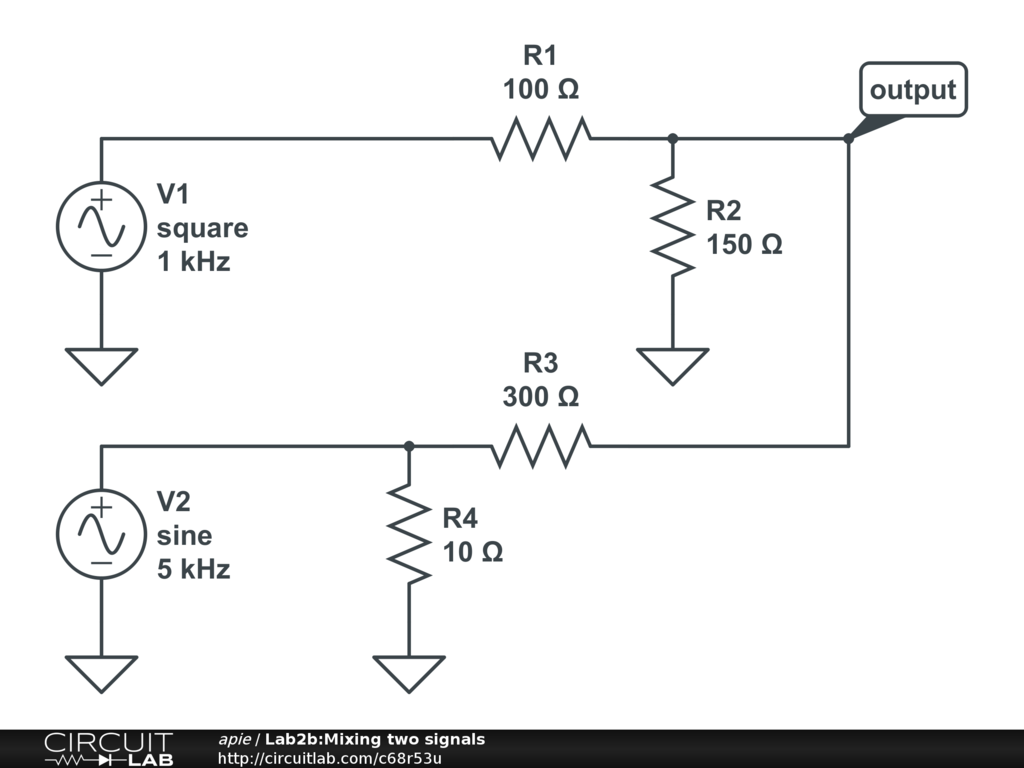

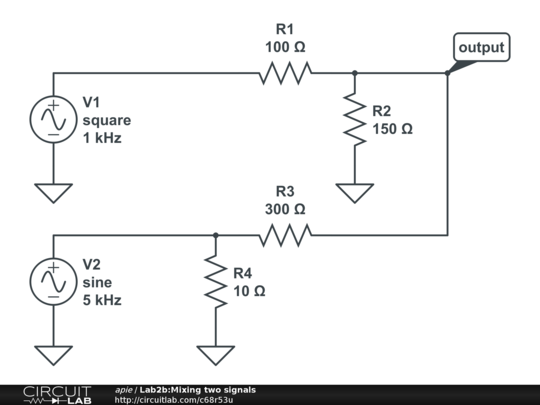

Lab2b:Mixing two signals

One possible answer for lab2b of 6.002, the ratio of resistors should be adjusted. But the simulation here is not same with that in mitx simulator.
