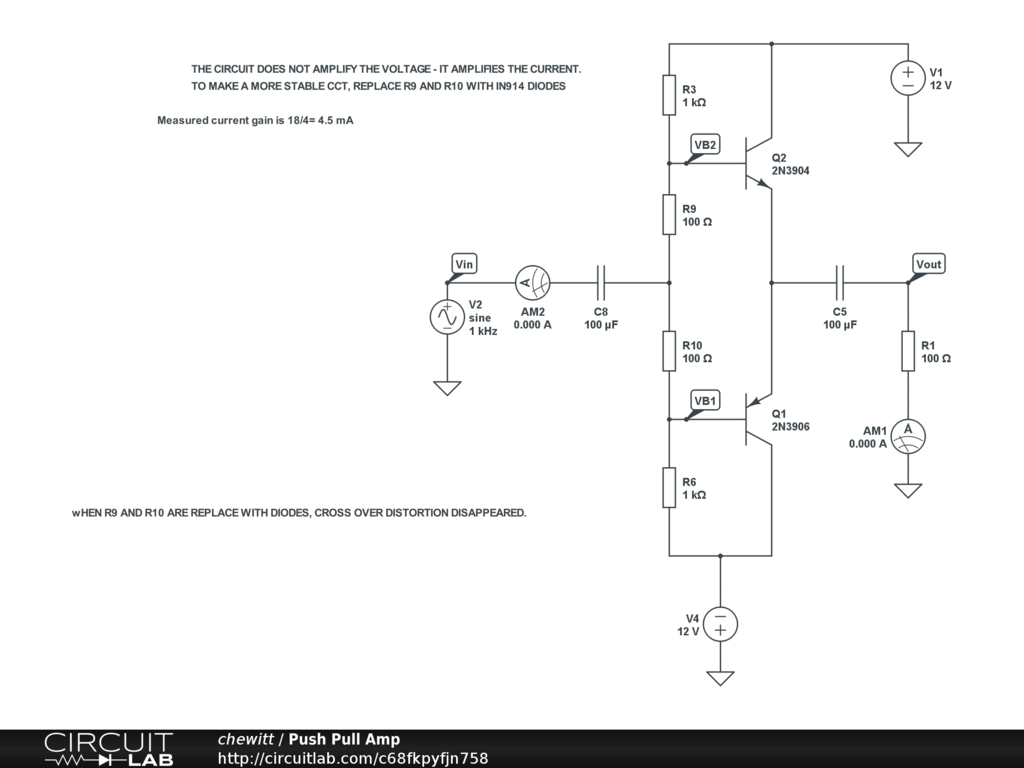

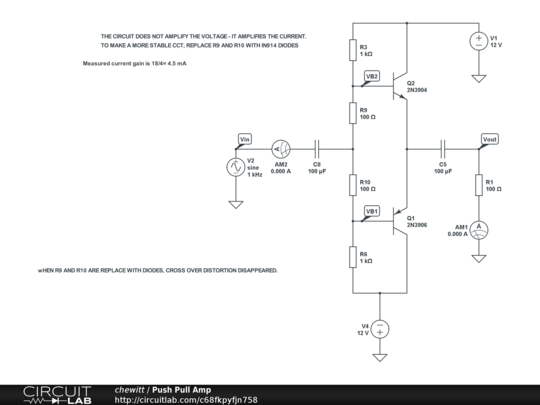

Push Pull Amp PUBLIC

Created by
Created October 04, 2022
Last modified December 21, 2023
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.

Comments

I cannot get this circuit to work. Can someone please help, Both halves of output is present even if one TR is disconnected.
