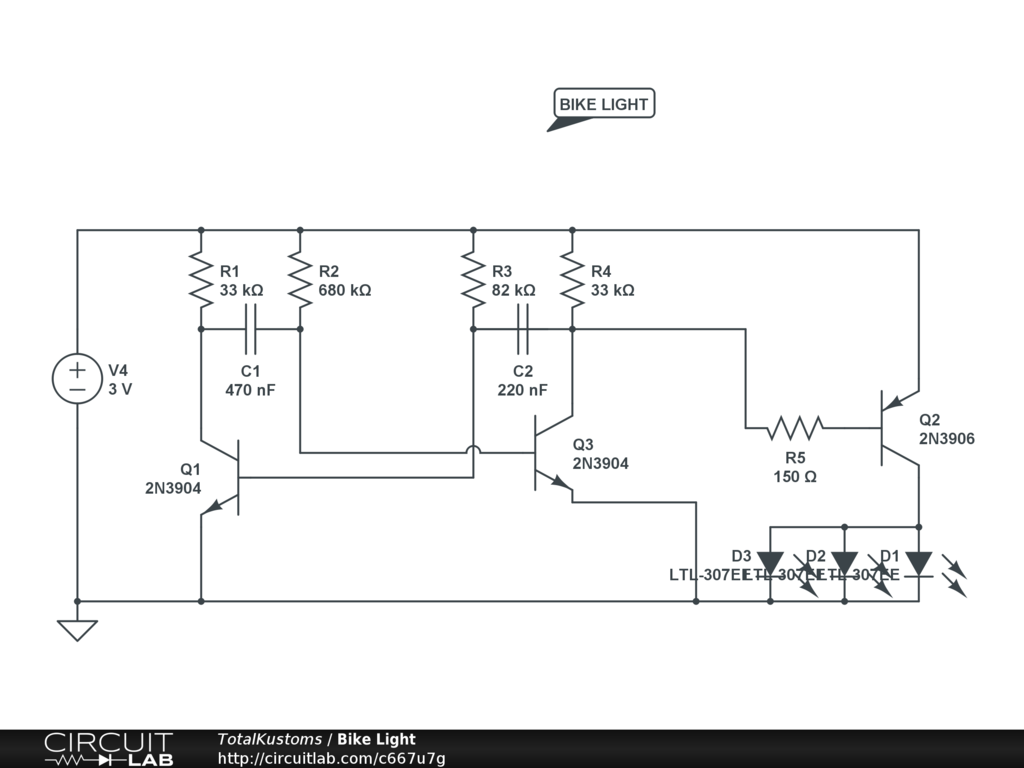

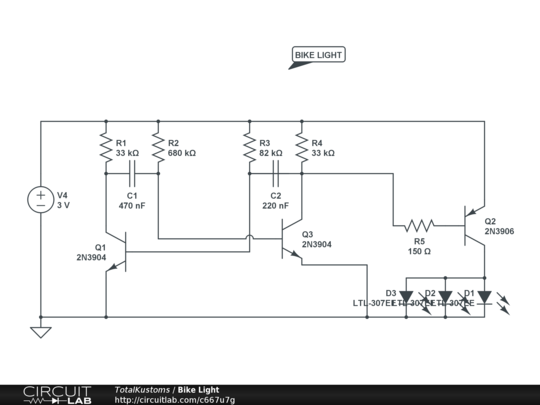

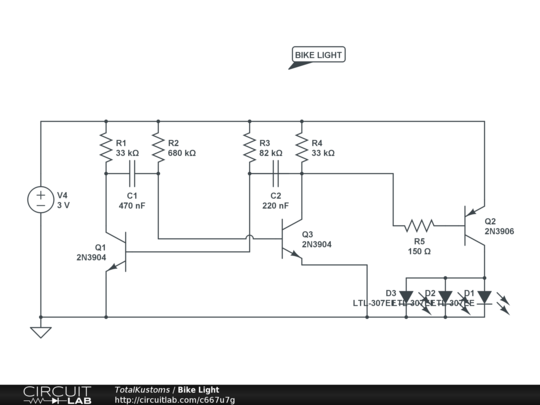

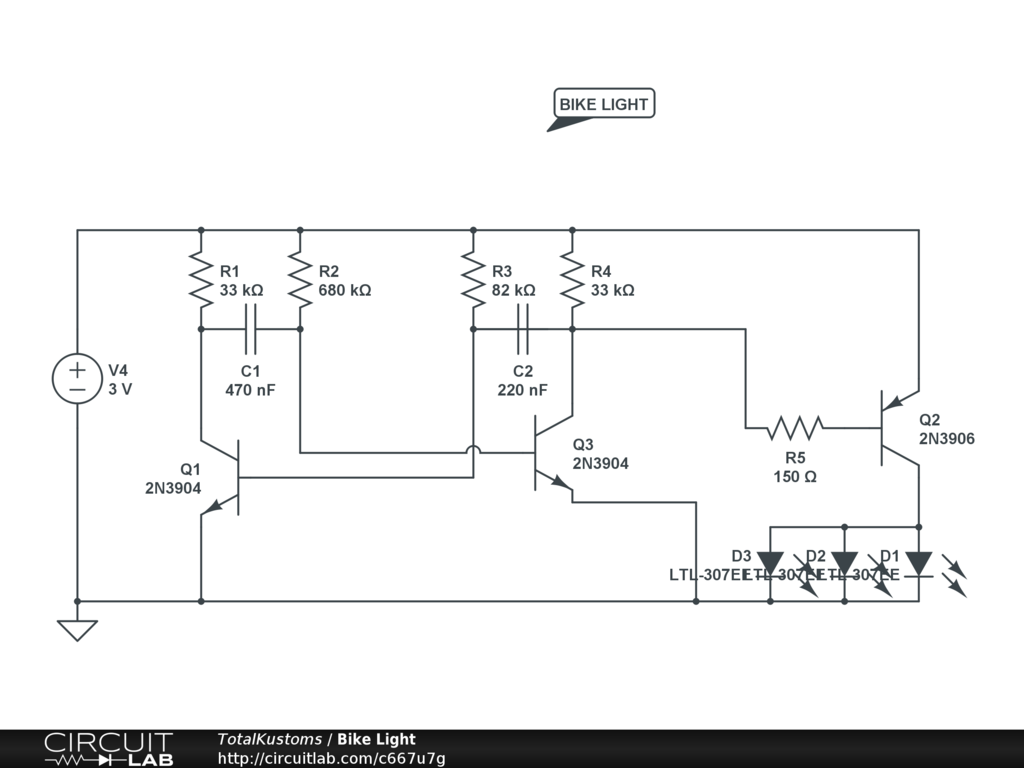

This DC circuit is made up of series and parallel using transistors that speed up the current in the circuit and capacitors that act as temporary batteries. The reason I put the Stop Time as 0.6seconds and Time Step as 1ms it provides enough time to show 4 charges and discharges along the LEDs
Not provided.
