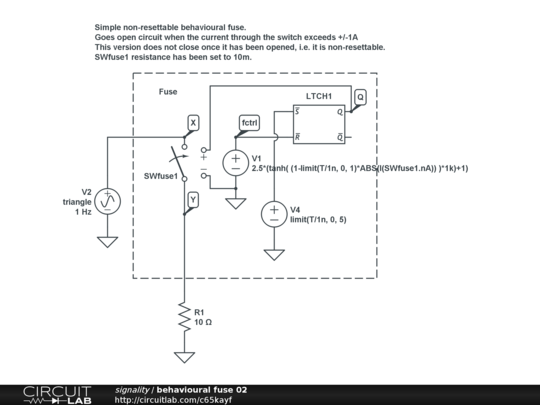

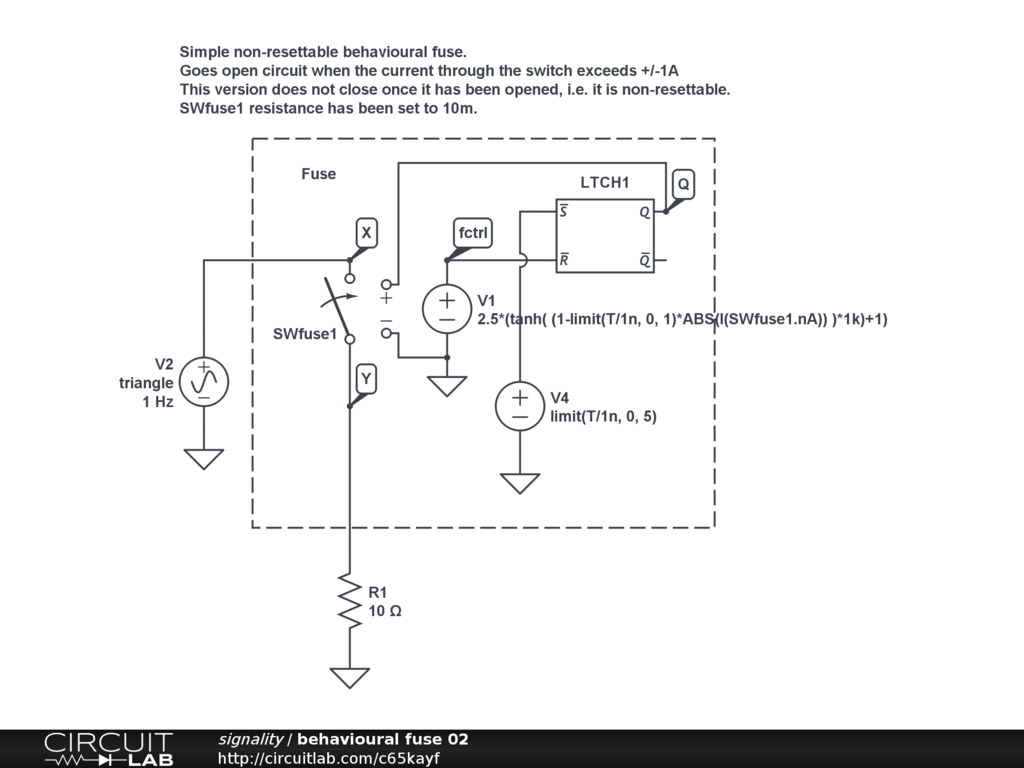

Simple non-resettable behavioural fuse.
Goes open circuit when the current through the switch exceeds +/-1A
This version does not close once it has been opened, i.e. it is non-resettable.
SWfuse1 resistance has been set to 10m.
The current Ifuse is set in the expression:
2.5*(tanh( (Ifuse-limit(T/1n, 0, 1)*ABS(I(SWfuse1.nA)) )*1k)+1)
Fuse delay time is set by the propagation delay, T_PD, of LTCH1
