Brewtroller 2xSPST->SPDT Switching PUBLIC

Created by
Created July 07, 2012
Last modified July 07, 2012
Tags brewtroller   oscsys   switching   valves

Summary

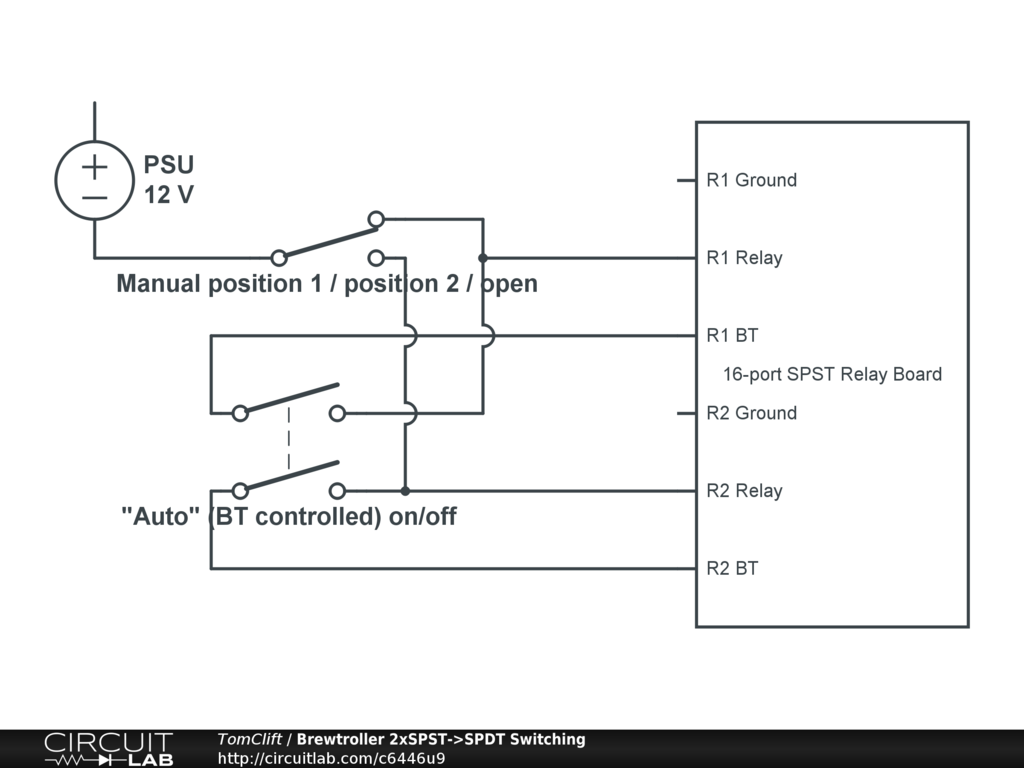

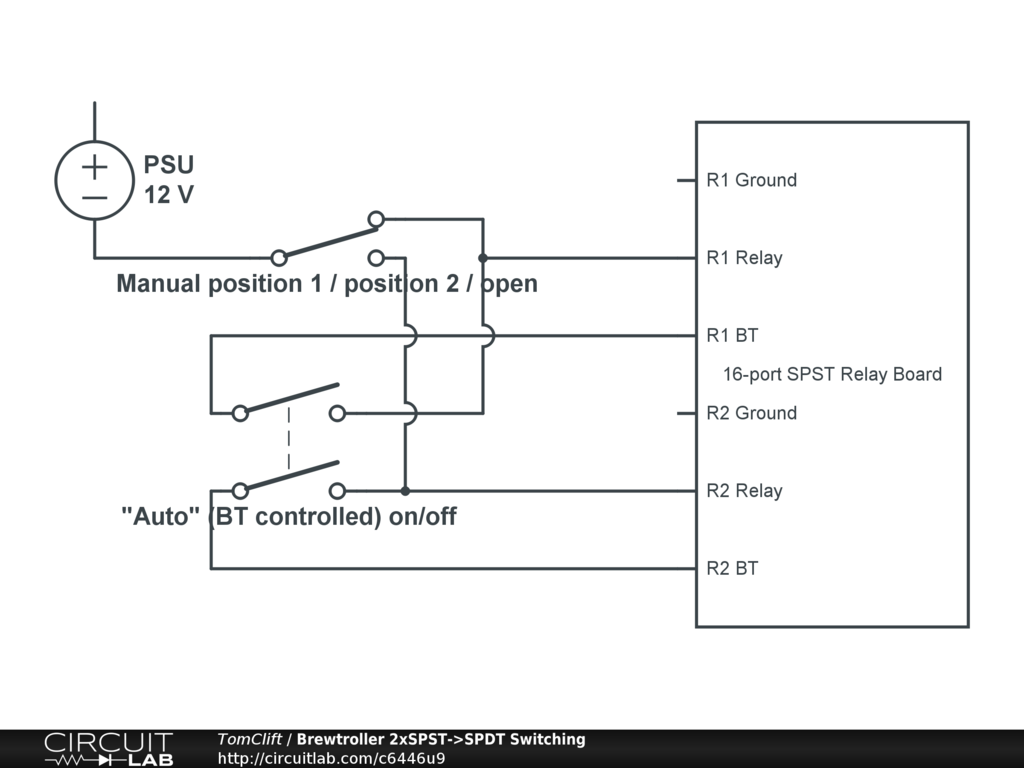

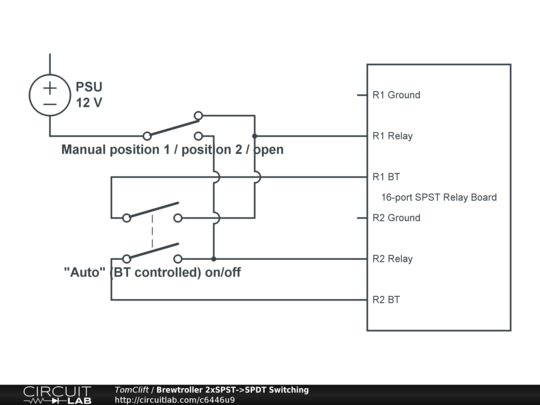

Switching for auto (BT controlled) / manual position 1 / manual position 2 using two SPST relays on the Brewtroller 16-port SPST relay board to control a single SPDT device (e.g. the KLD20S 3-way motorised ball valve, B3 wiring).
