Current controlled potentiometer PUBLIC

Created by
Created January 02, 2021
Last modified January 02, 2021
Tags No tags.

Summary

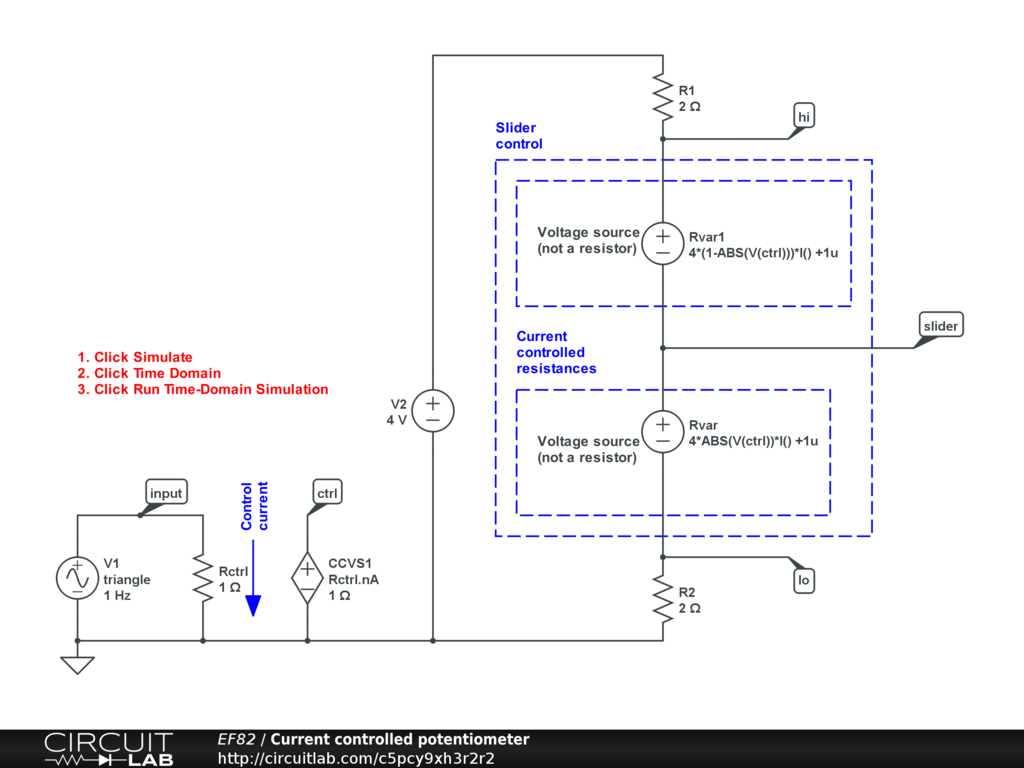

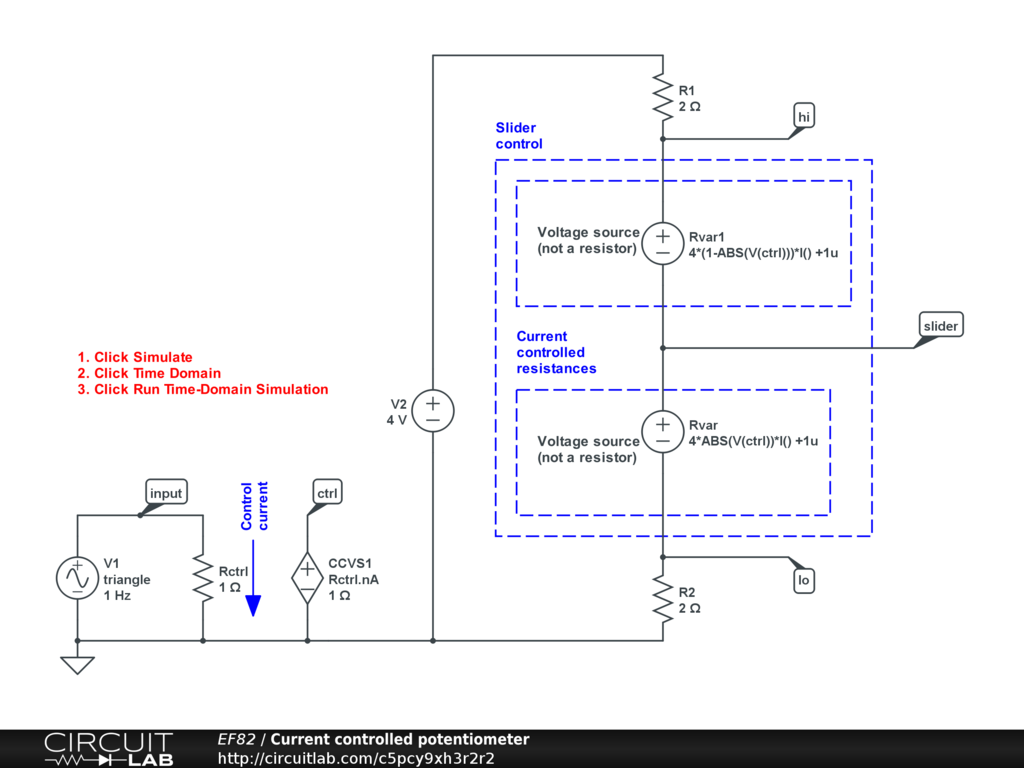

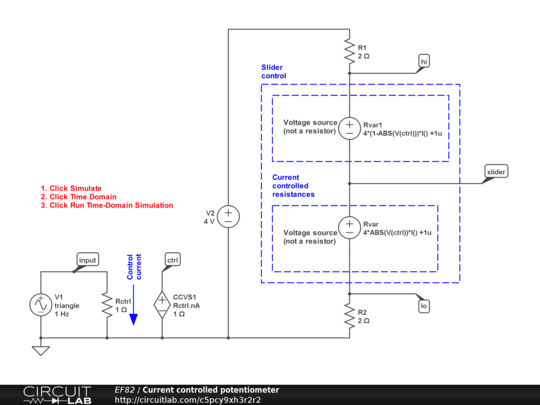

Experimental investigation to simulate a current controlled potentiometer slider. Two behavioural voltage sources in series.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Based on: https://www.circuitlab.com/circuit/m26zer743v7u/current-controlled-resistance/

Control current varies from 0-1. Rvar varies as "current"; Rvar1 varies as "1-current".
