transformer_no_load_loss_test

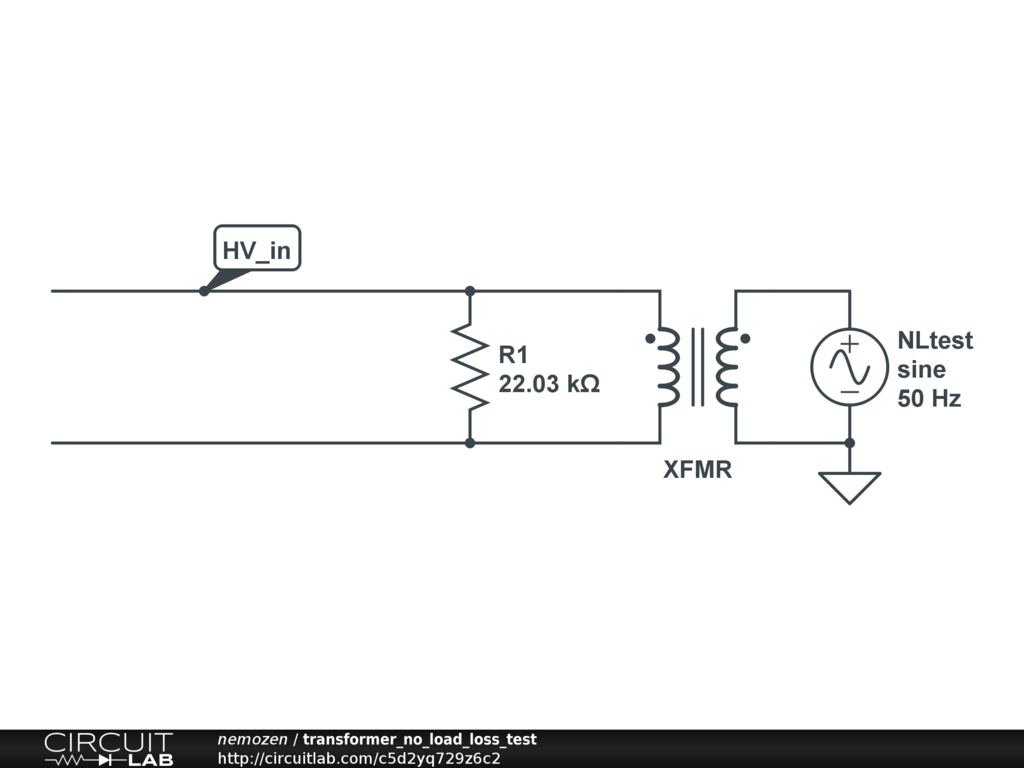

Simulation of 2% no-load loss, for a single phase 15kV-240V transformer, rated at 170kVA.
