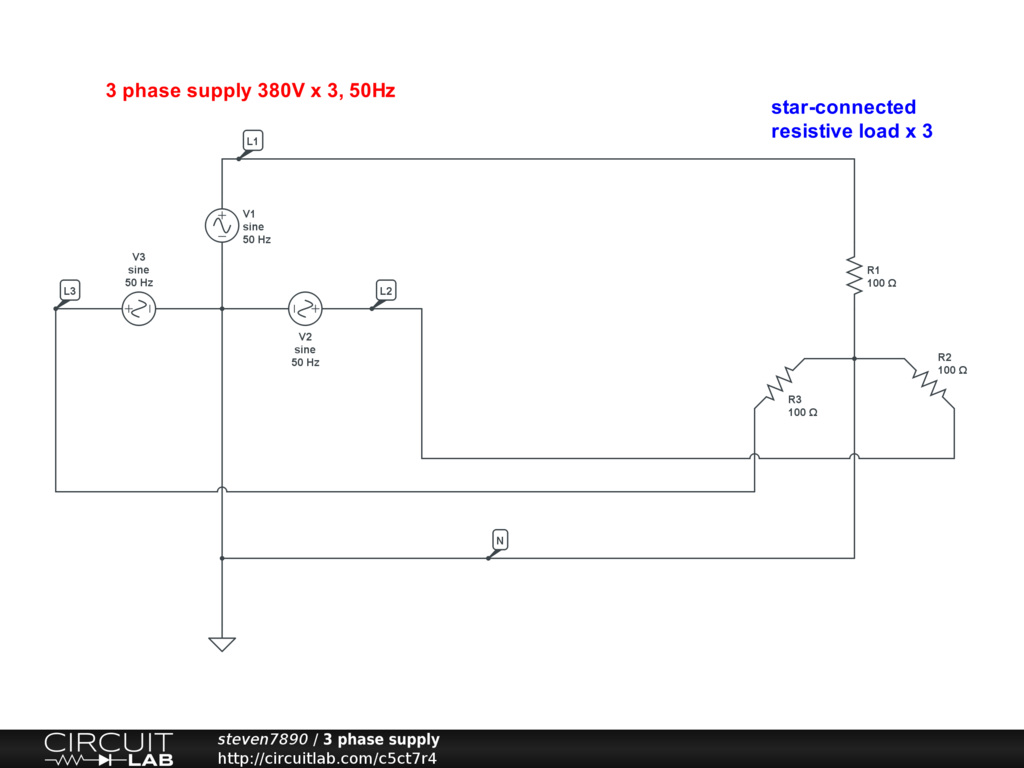

In this circuit, I model a 3-phase power supply by 3 signal sources connected in "star" manner. The 1st signal source is set to 0 degree phase shift. The 2nd and the 3rd signal source are set to 120 and 240 degree phase shift respectively. The loads are resistive and balanced, and connected as "star" too. When I made a simulation, to my surprise, the phase voltage and the line voltage waveform are not in phase...Why ? Or did I make any mistake ? Thanks in advance for your help.
