LED multi string linear constant current sink 02

Created by	signality
Created	April 15, 2013
Last modified	April 15, 2013
Tags	constant-current-sink constant-current-source current-sink led led-array led-string

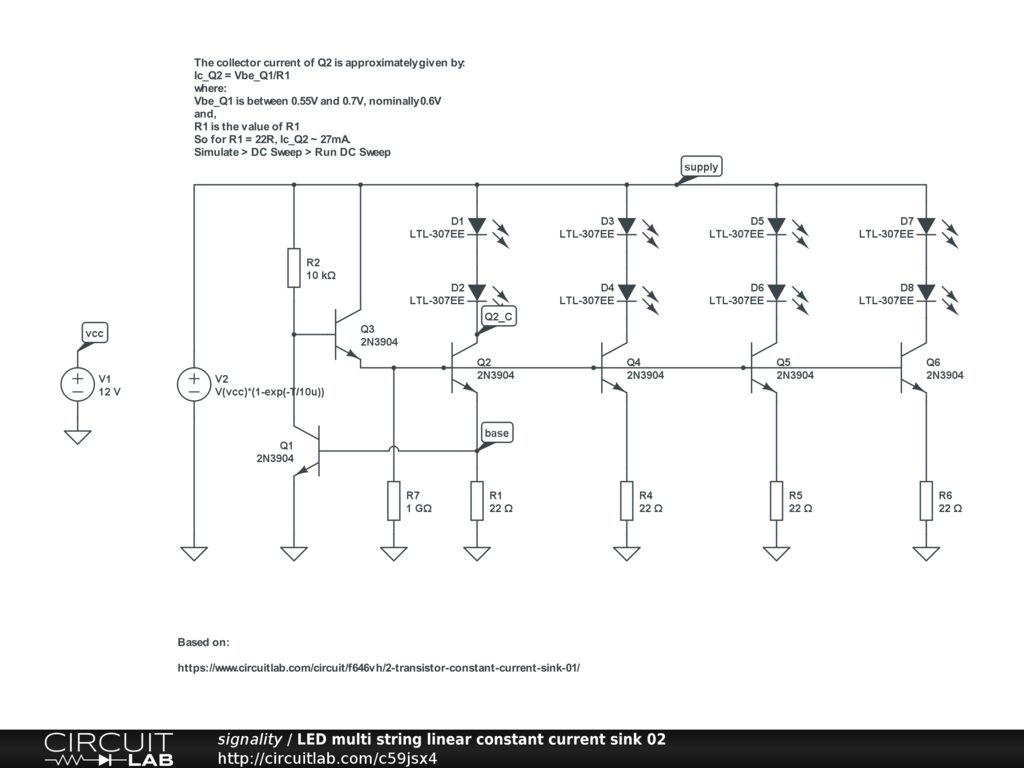

An attempt to get the time domain sim of:

LED multi string linear constant current sink 01

to work properly.

It doesn't.

Time Domain simulation still shows erroneous current spikes at startup.
