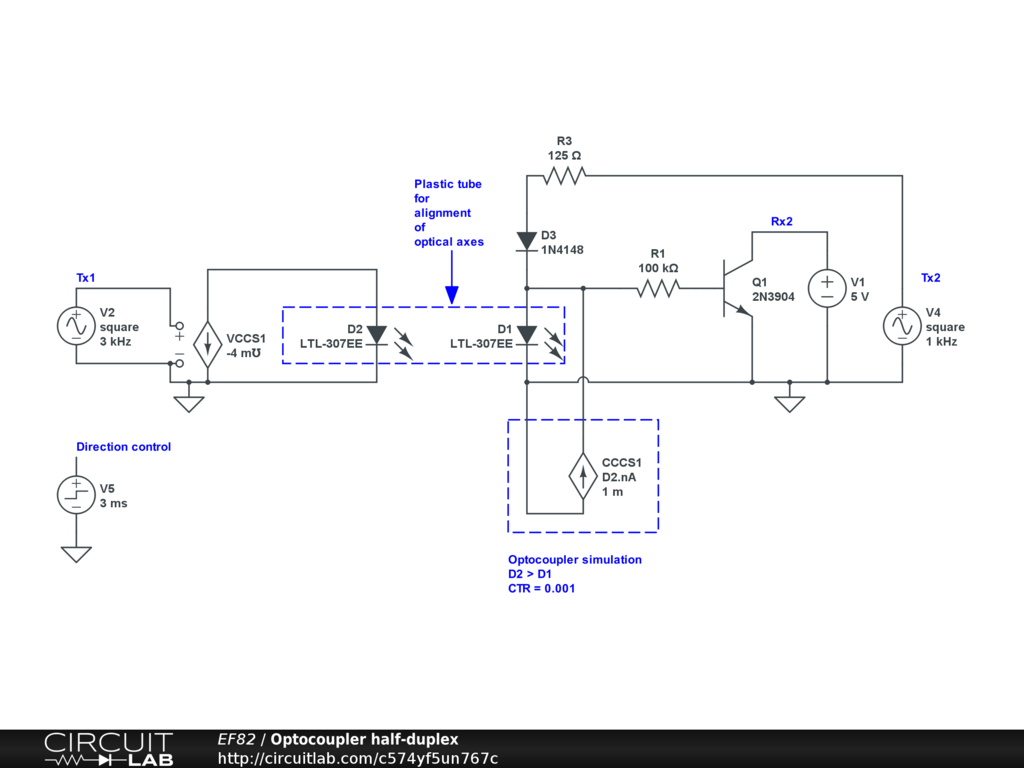

Optocoupler half-duplex

Using 2 LEDs to make an optocoupler. High brightness red LEDs have useful photoelectric responses which enable bi-directional half-duplex operation.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

High brightness narrow beam, 15cd, red LEDs: CREE C503B series.

With Tx diode at 20mA, the Rx diode produces at least 20uA short circuit, CTR = 0.001.

Reverse direction incomplete.
