common emitter amp 01

Created by	signality
Created	May 12, 2013
Last modified	May 12, 2013
Tags	ce-amplifier ce-stage common-emitter

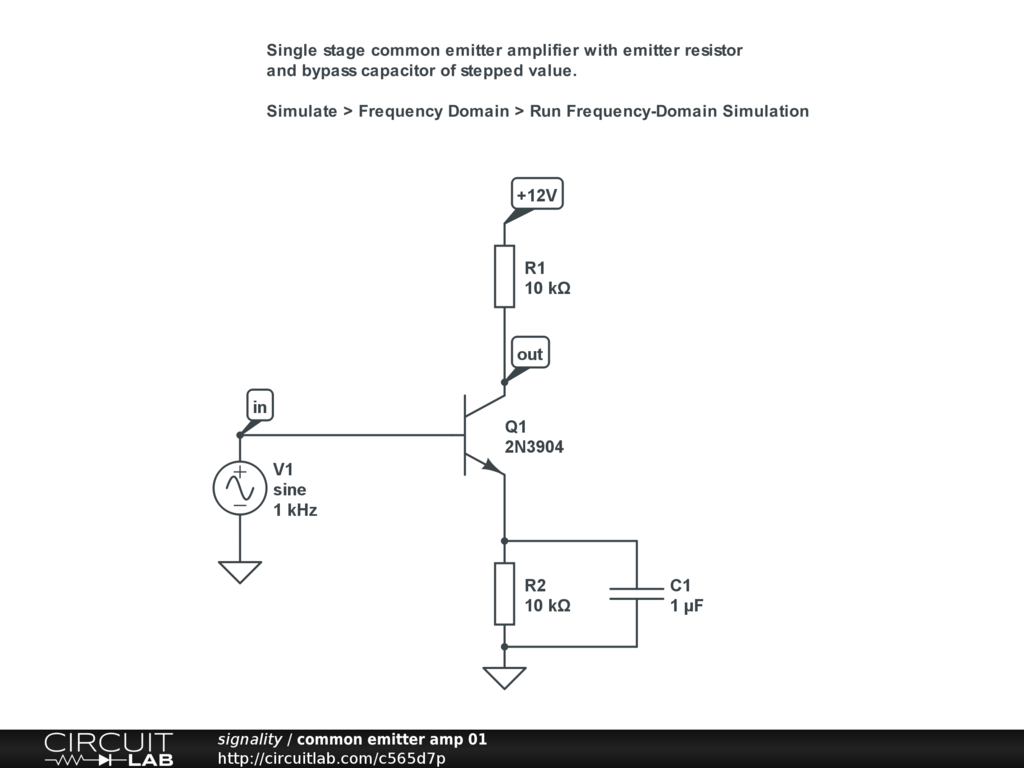

Common Emitter gain stage with emitter biasing resistor and stepped emitter bypass capacitance
