inverter PUBLIC

I tried to post this in reply to your forum post but CL got itself in a knot ...

@issicle,

Welcome to CL.

"How do I post my circuit here?".

OK, go to your circuit in My Workbench. Click on the Make public button.

The picture here shows it's location:

https://www.circuitlab.com/blog/2012/06/07/unlisted-circuits-easier-sharing-of-schematics/

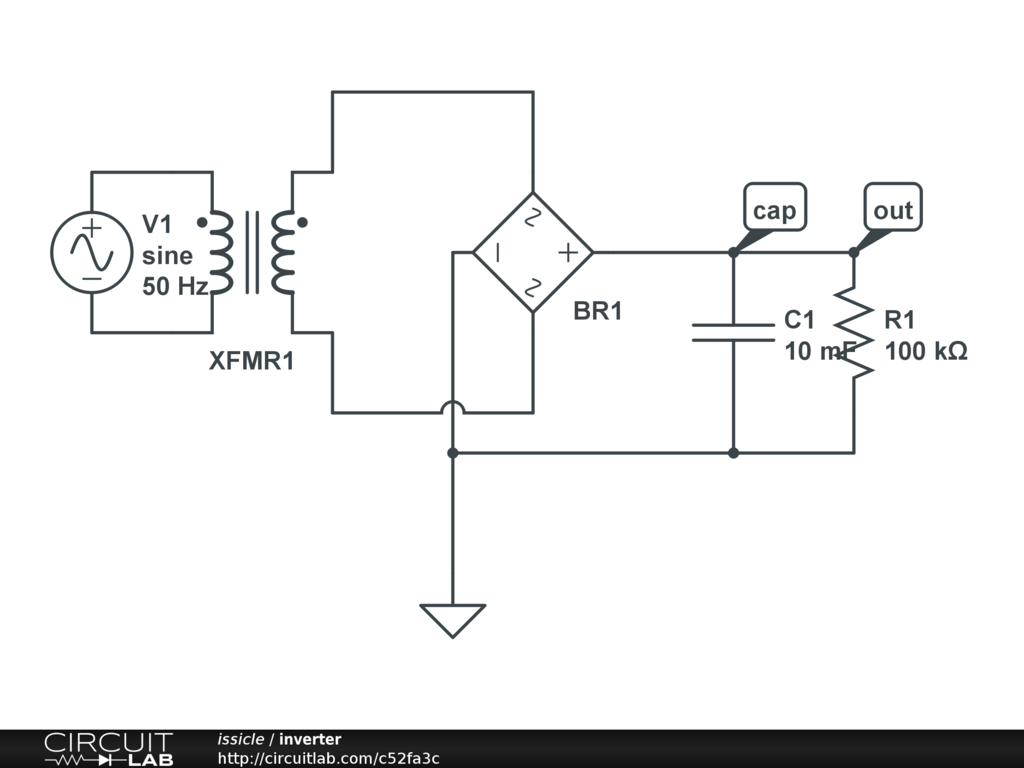

About your simulation.

You've edited it since your first posting but the version as originally posted seemed to run OK with a Stop Time of 1s and a Time Step of 1ms.

Running it for 10s with a Time step of 10ms as I think your original timing was would not work very well as the solver gets confused and gets its sums wrong.

You could run a Stop Time of 10s and a Time Step of 1ms, that would just take longer.

In case you wonder ... I ran it from your workbench by clicking on your name.

:)
