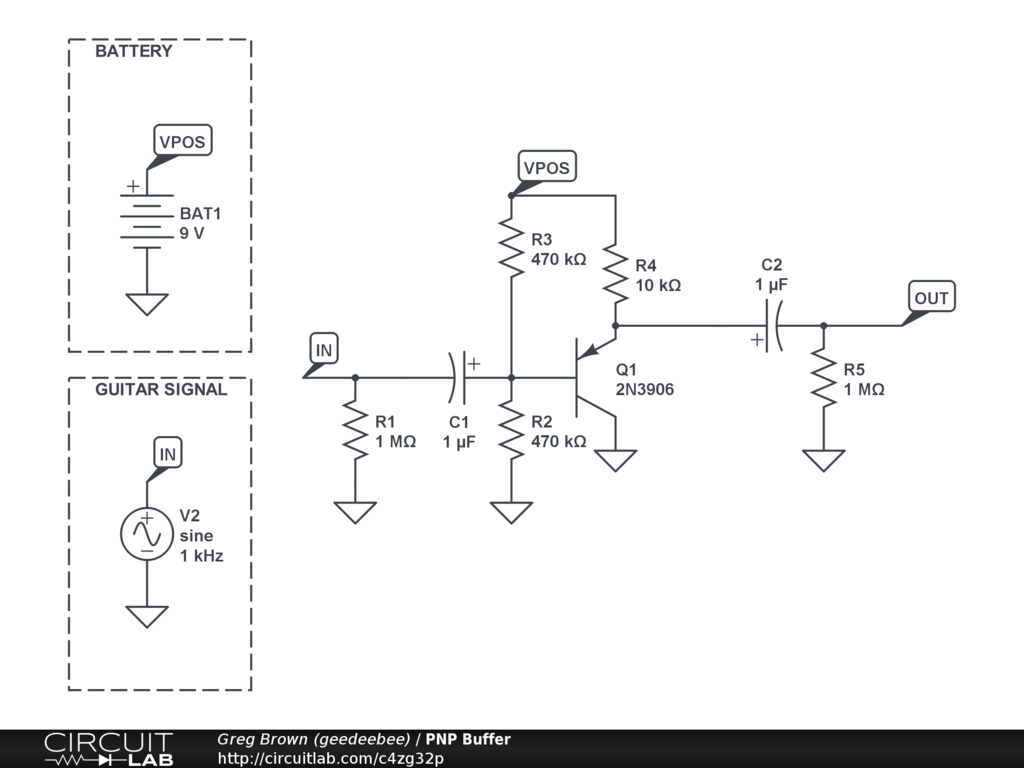

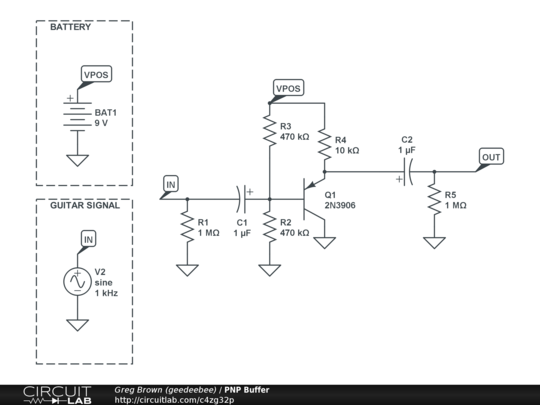

PNP buffer from http://www.muzique.com/tech/ge_buff.htmusing 470k R2 and R3 for higher input impedence.
Don't throw out those leaky AC128's! Put them to good use in something like this!!!!!
