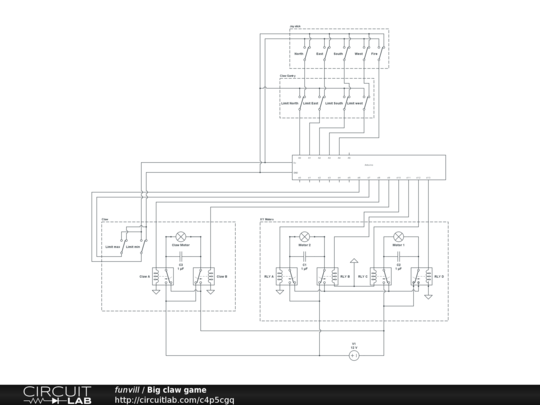

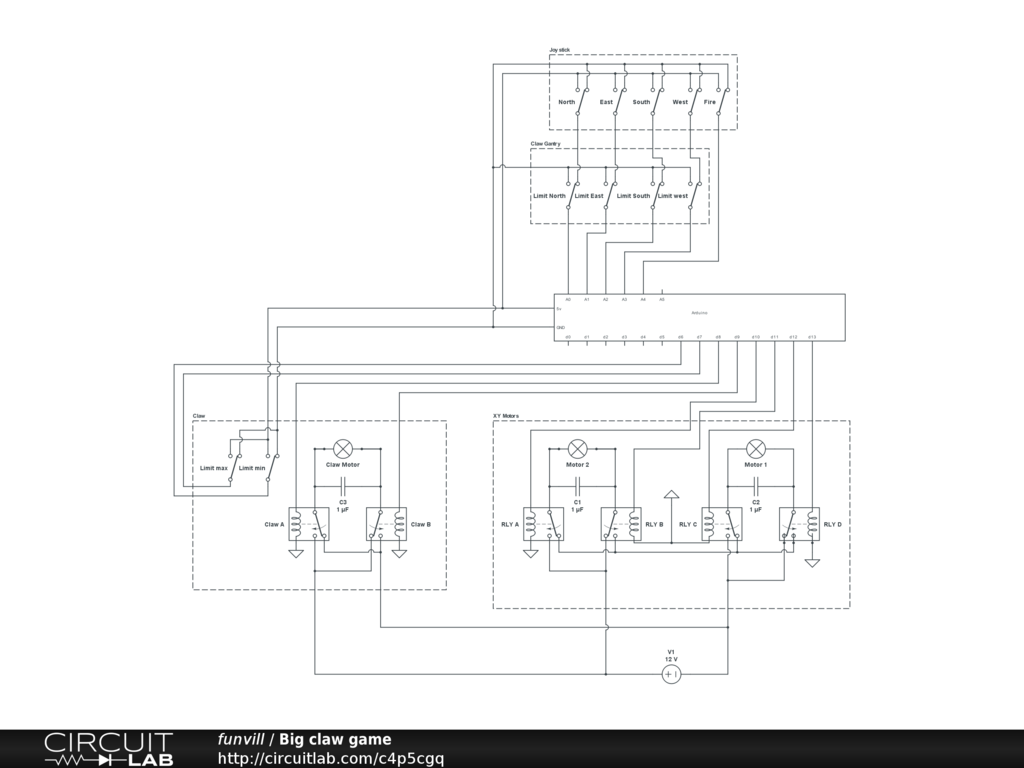

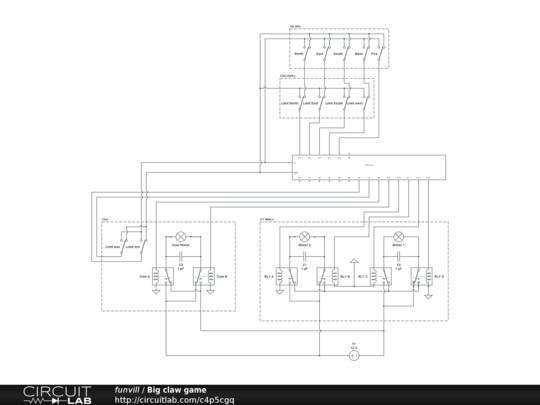

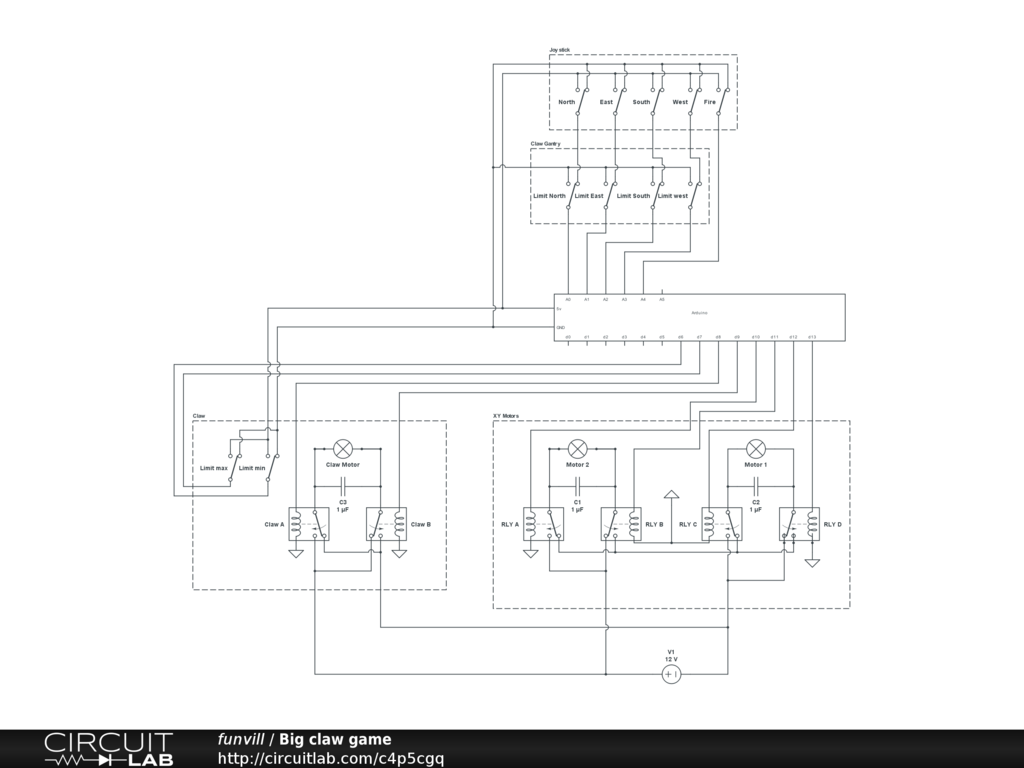

Big claw game

A joy stick controlling two motors on a XY table. Motor 1 is for the left and right while motor 2 is for the up and down.
