2stage_common_emitter_amp_diodebiased_output PUBLIC

Created by
Created October 19, 2023
Last modified October 19, 2023
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Hi,

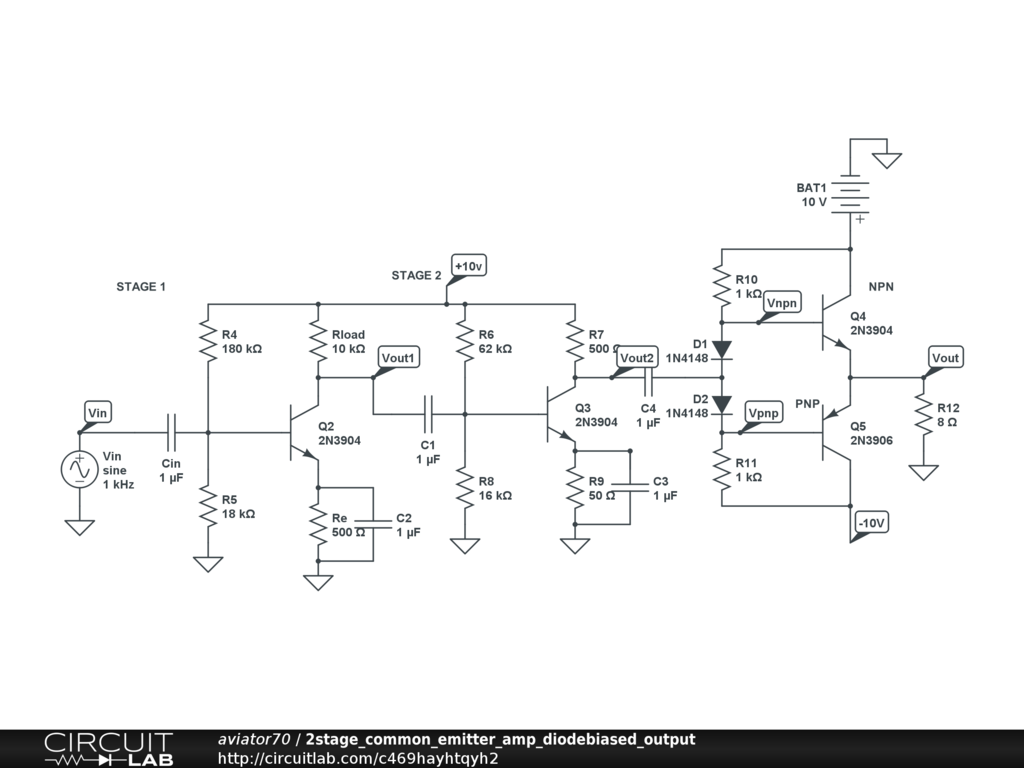

WHen I run Time domain simulation on Vin (25mV) and Vout, Vout does not go negative and each peak positive amplitude decreases slightly. ANy help or solution welcome.

Thanks.
