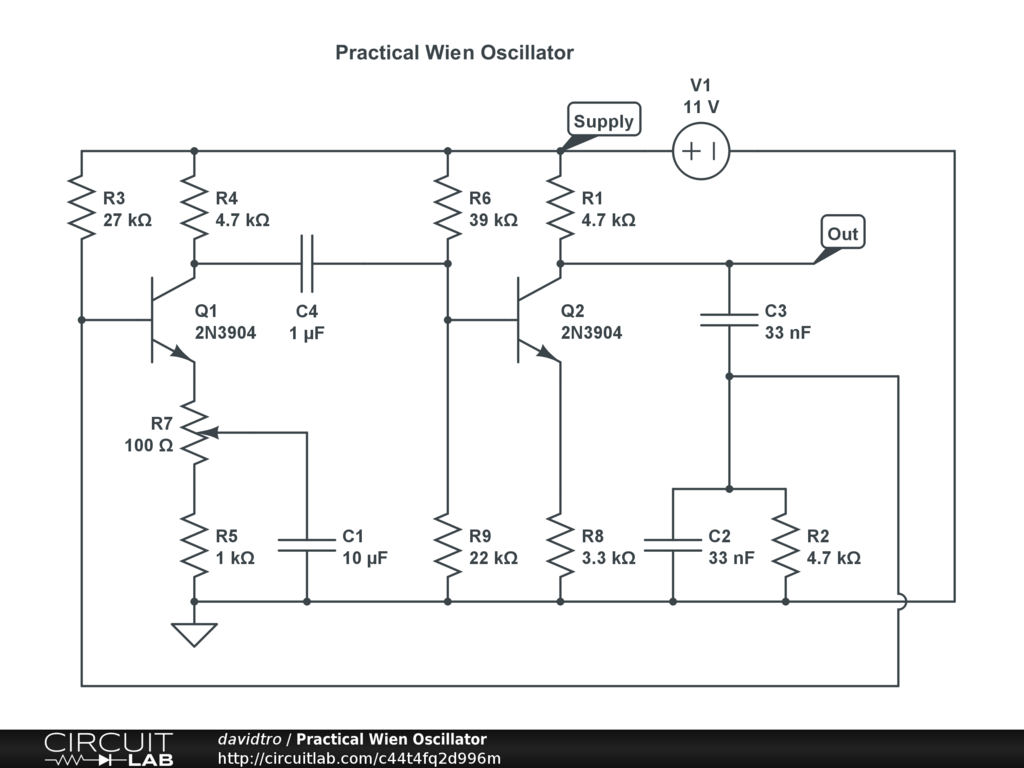

I built this Wien Oscillator in my lab with two 2N3904 transistors and it works. With an 11.0V supply, it generates a sinewave signal with a peak-to-peak output of 0.18V at a frequency of 1333 Hz. By my CircuitLab doesn't oscillate. What have I done wrong?
Thanks!
