Moog sawtooth to triangle converter 01

Created by	signality
Created	October 26, 2012
Last modified	October 26, 2012
Tags	converter full-wave-rectifier moog sawtooth synth synthesiser synthesizer triangle

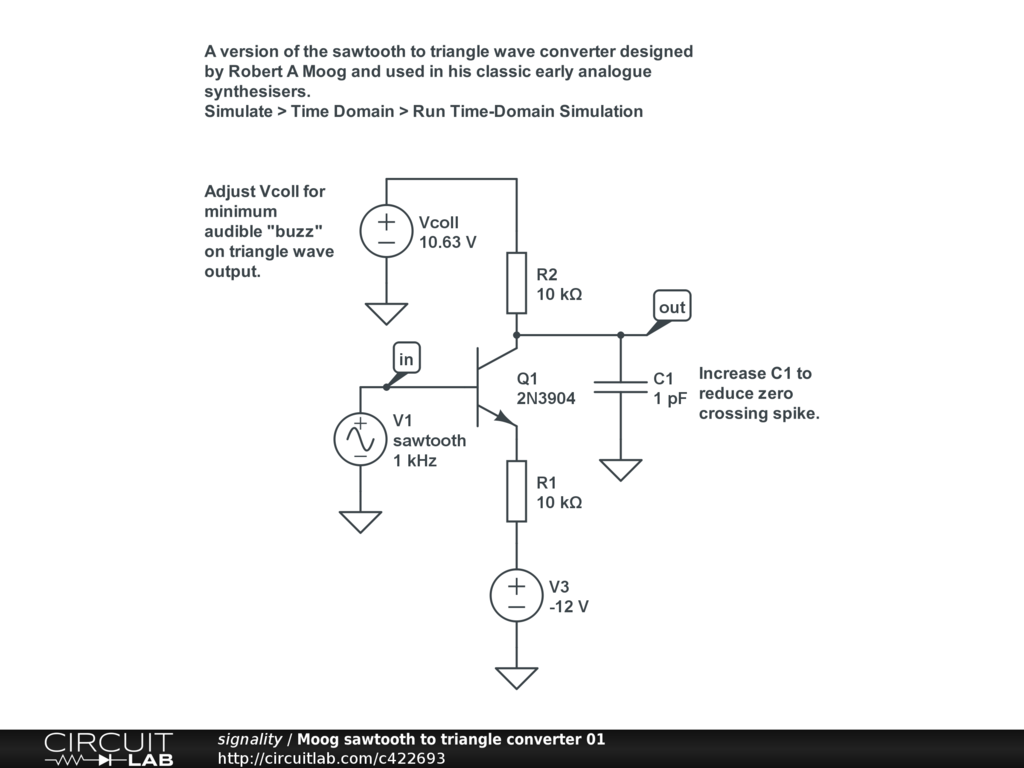

A version of the sawtooth to triangle wave converter designed
by Robert A. Moog and used in his classic early analogue
synthesisers.

Simulate > Time Domain > Run Time-Domain Simulation

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

A version of the sawtooth to triangle wave converter designed by Robert A. Moog and used in his classic early analogue synthesisers.

Simulate > Time Domain > Run Time-Domain Simulation

Note that this circuit performs the function of a full wave rectifier.
