A Voltage Controlled Voltage Source (VCVS) can be created using a behavioral, algebraic definition.

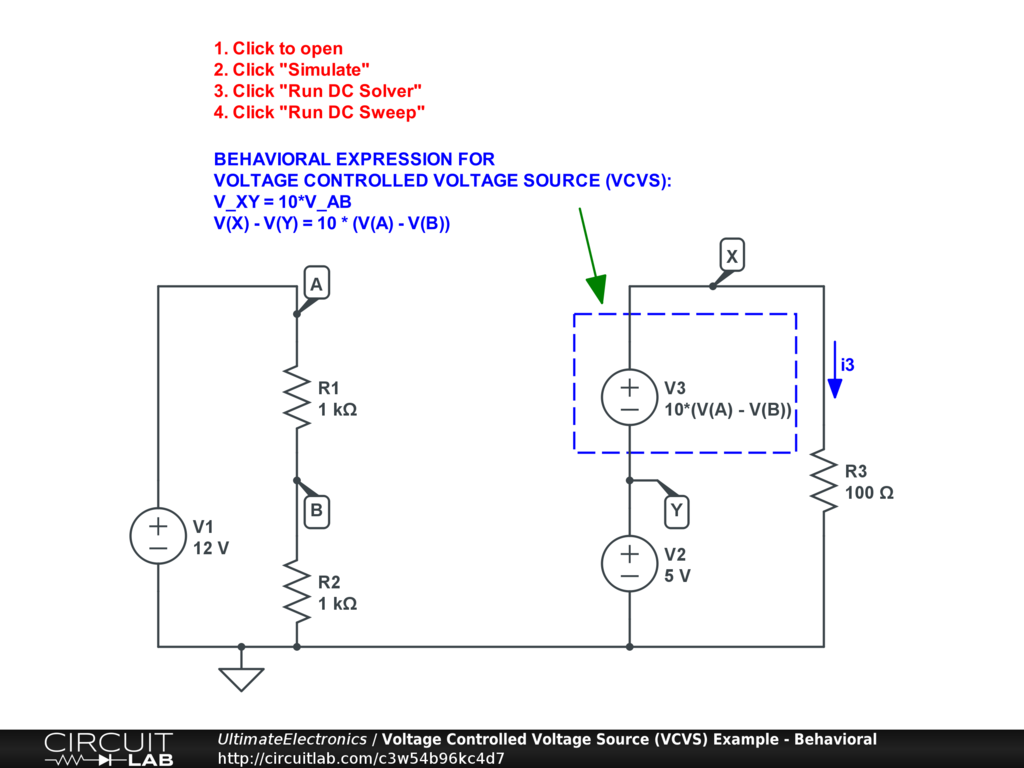

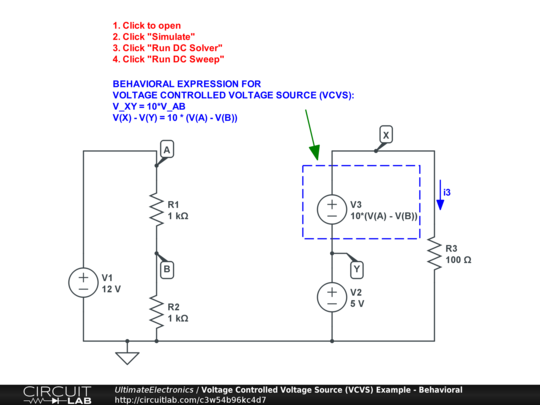

This example is from the Dependent (Controlled) Sources chapter of Ultimate Electronics Book. It shows a DC Sweep simulation where the voltage across the V3 component depends on a voltage difference 10*(V(A) - V(B)) elsewhere in the circuit.
This takes advantage of CircuitLab's support for Behavioral Sources, where you can define a voltage or current source's value with a simple mathematical expression.
