Tremolo 02 PUBLIC

Created by
Created September 02, 2013
Last modified September 02, 2013
Tags No tags.

Summary

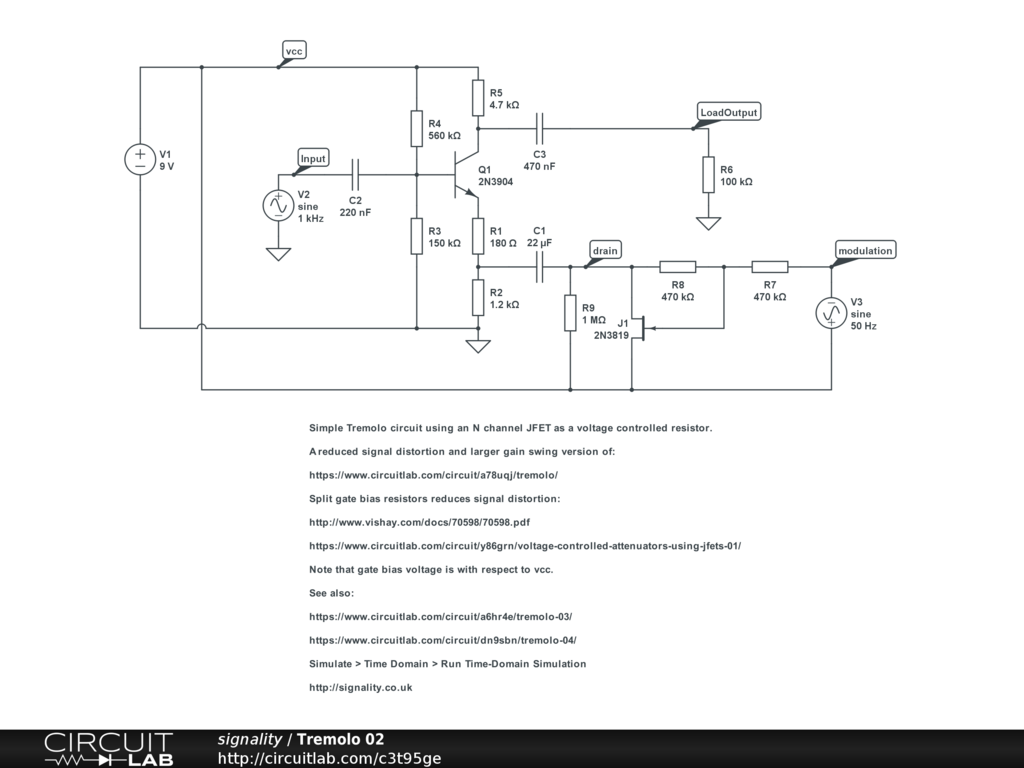

Simple Tremolo circuit using an N channel JFET as a voltage controlled resistor.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Simple Tremolo circuit using an N channel JFET as a voltage controlled resistor.

A reduced signal distortion and larger gain swing version of:

https://www.circuitlab.com/circuit/a78uqj/tremolo/

Split gate bias resistors reduces signal distortion:

http://www.vishay.com/docs/70598/70598.pdf

https://www.circuitlab.com/circuit/y86grn/voltage-controlled-attenuators-using-jfets-01/

Note that gate bias voltage is with respect to vcc.

See also:

https://www.circuitlab.com/circuit/a6hr4e/tremolo-03/

https://www.circuitlab.com/circuit/dn9sbn/tremolo-04/

Simulate > Time Domain > Run Time-Domain Simulation

http://signality.co.uk
