Improved Howland Current Pump

Created by	Gregory Pruden (n0npr0phet)
Created	August 15, 2018
Last modified	February 25, 2020
Tags	constant-current-source current difference-amplifier howland test-equipment

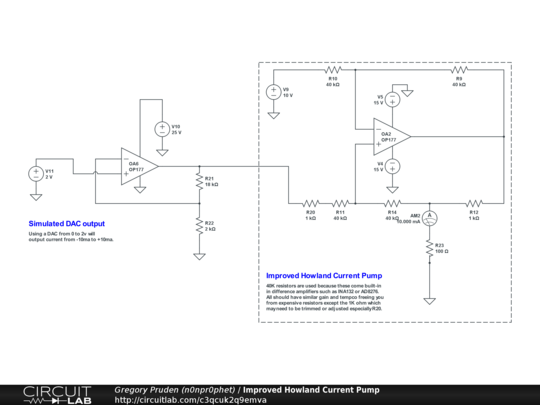

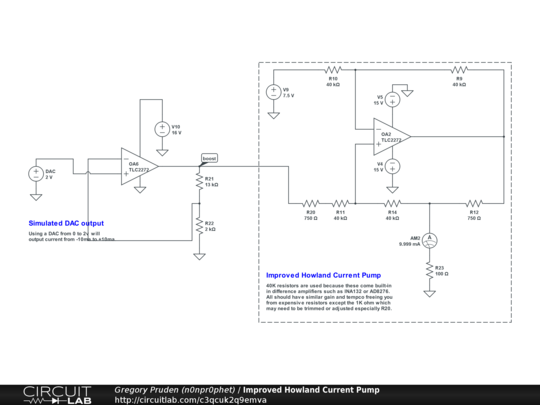

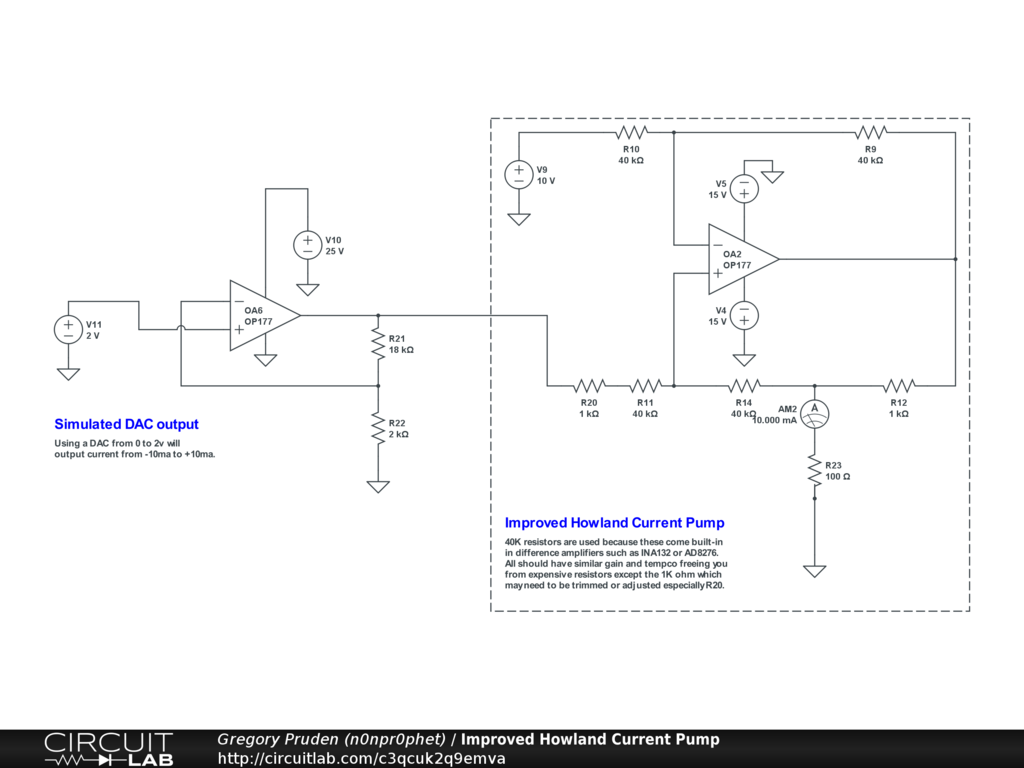

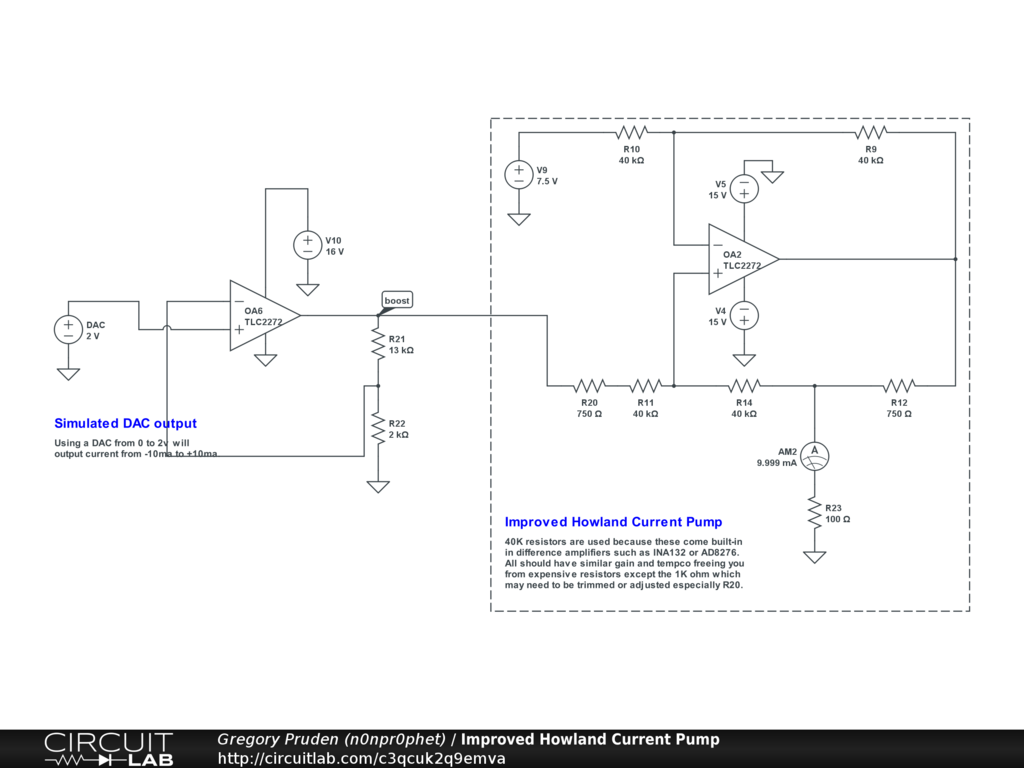

An Improved Howland Current Pump which provides -10 to +10ma of current based on 0 to 2v input. 25v and +/-15V supplies are also required.
