Created April 14, 2016
Last modified April 15, 2016
Tags switch   transformer   transistor

Summary

Not provided.


Description

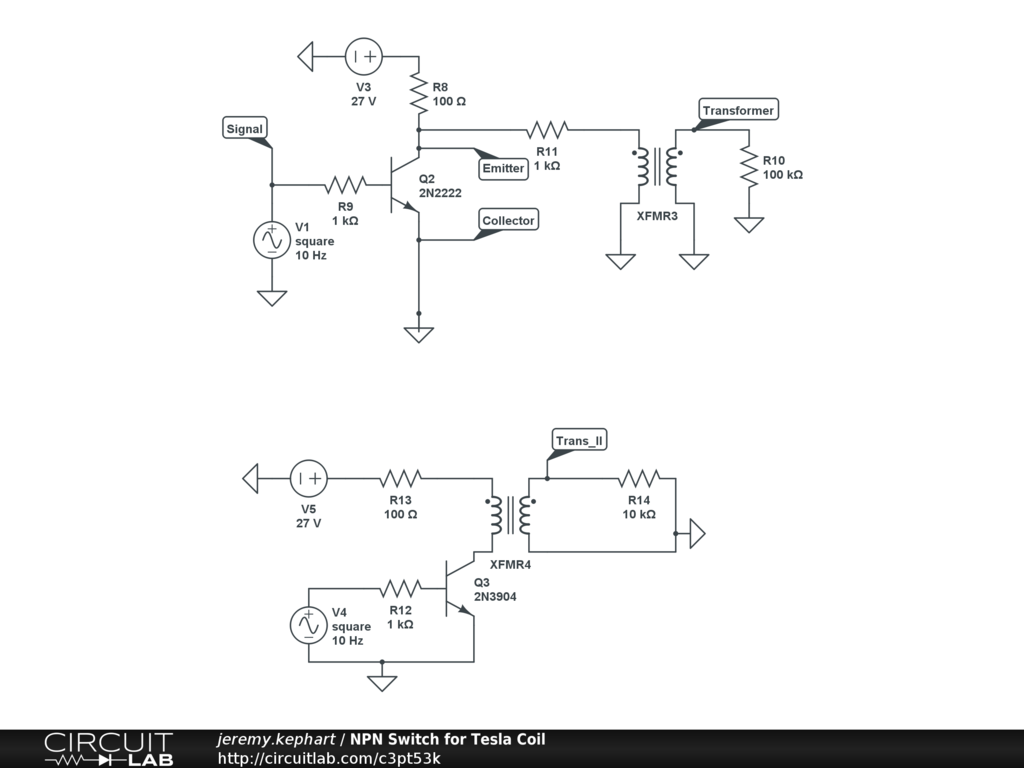

A simple switch using a transistor to push a larger current through a transformer. This was intended to show how to build a switch for an Arduino to control a transistor which is fast enough for something like a Tesla coil.
