Capacitor buffer for router

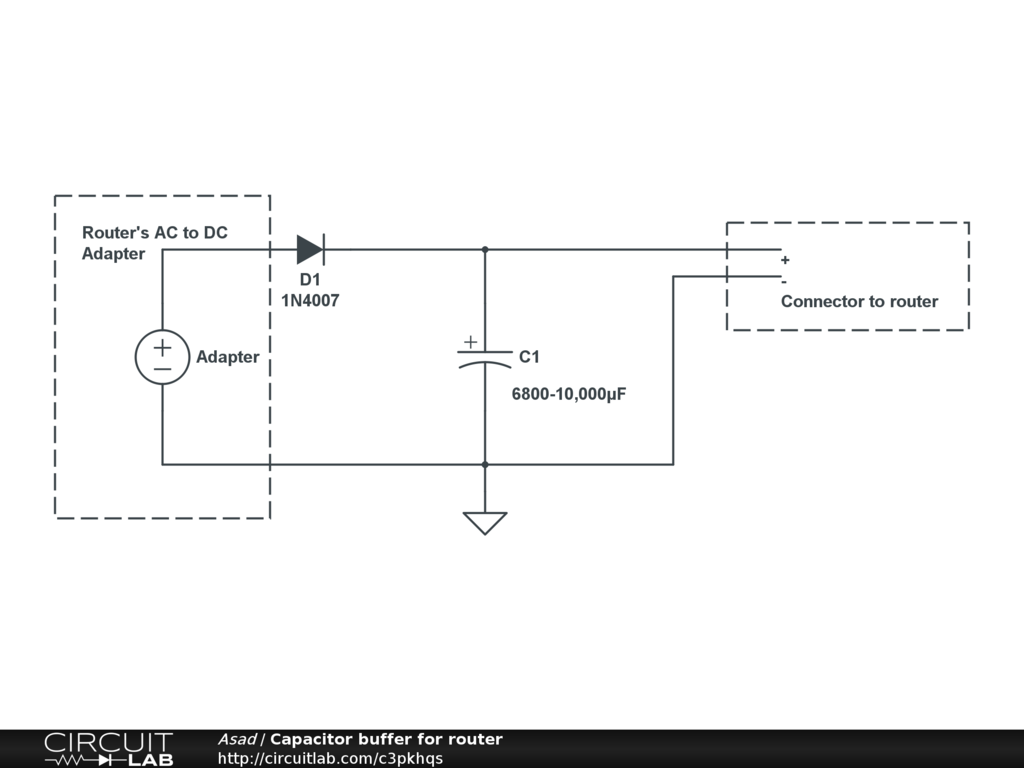

A simple capacitor buffer circuit to prevent the DSL router from being reset during Utility Power to UPS switchover.
