Simple cascaded filters 02

Same as:

Simple cascaded filters 01

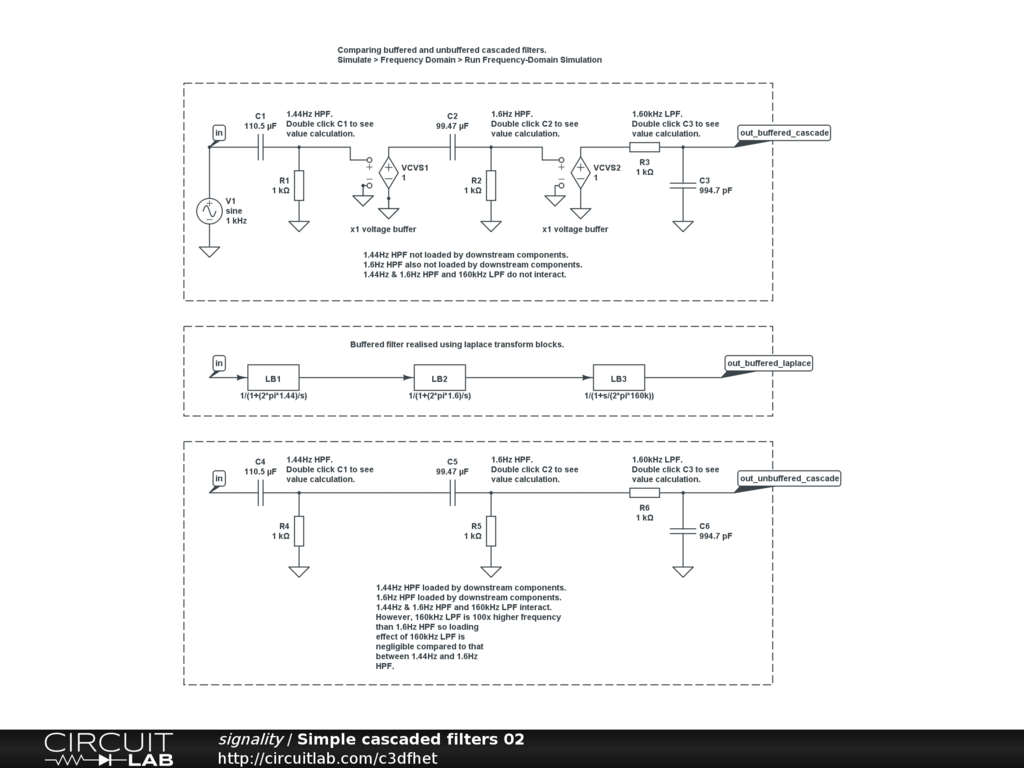

but with the addition of the same filter implemented as a cascade of Laplace blocks.
