Adapta a 72 PUBLIC

Created by
Created November 07, 2012
Last modified November 07, 2012
Tags No tags.

Summary

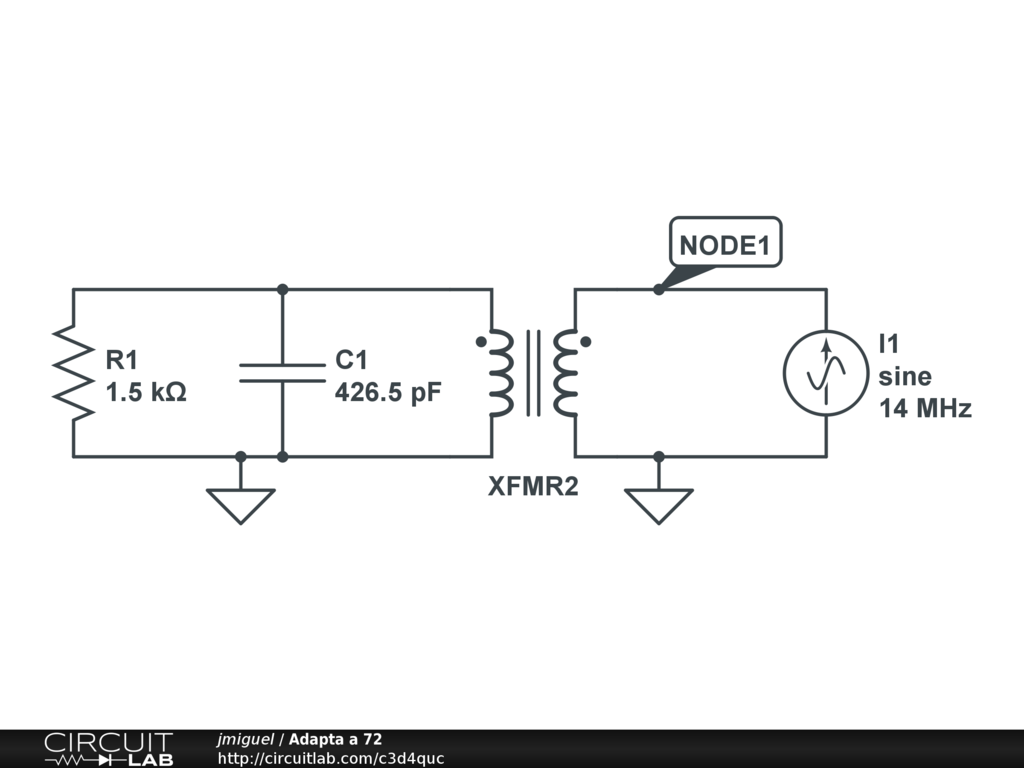

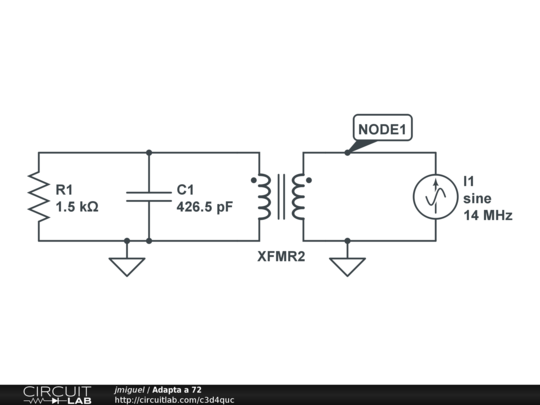

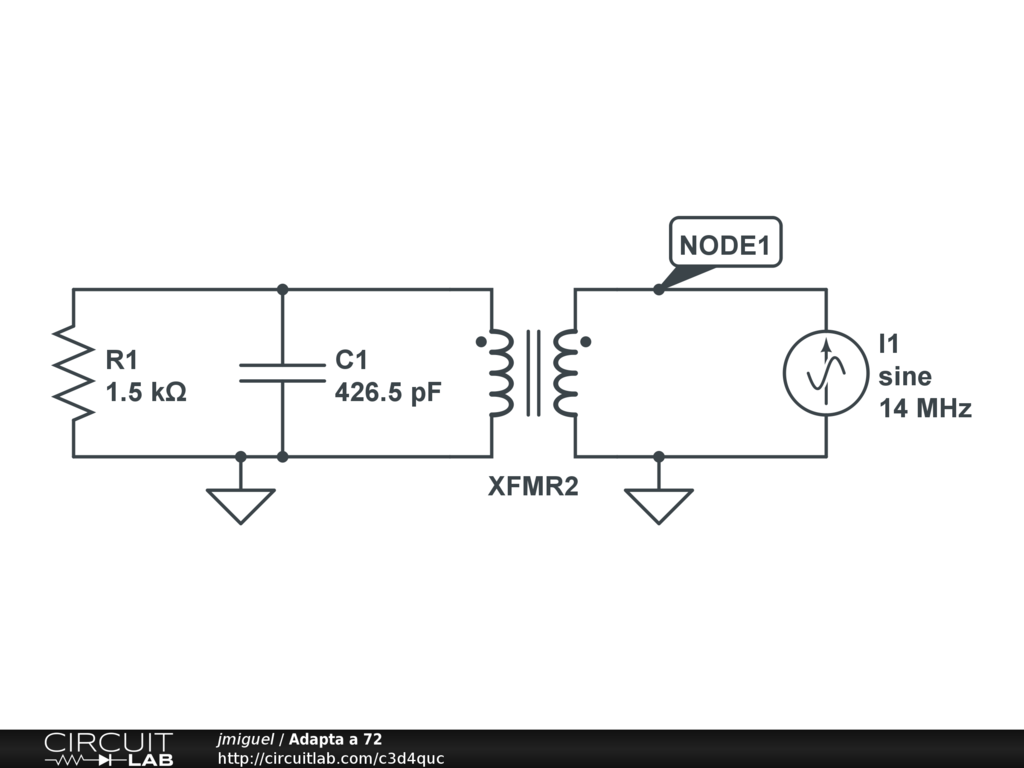

Circuito que adapta la entrada de un receptor (1500Ohm) a un dipolo de 72 Ohms. Opera a 14MHz

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

La simulación permite obtener la impedancia de entrada para distintas frecuencias.Para ello se ha excitado el circuito con una fuente de corriente de 1A y se visualiza la tensión del nodo 1.Si el circuito está bien diseñado,se obtendrá una impedancia de 72 Ohms a 14MHz.
