01 Wall Wart Power Supply

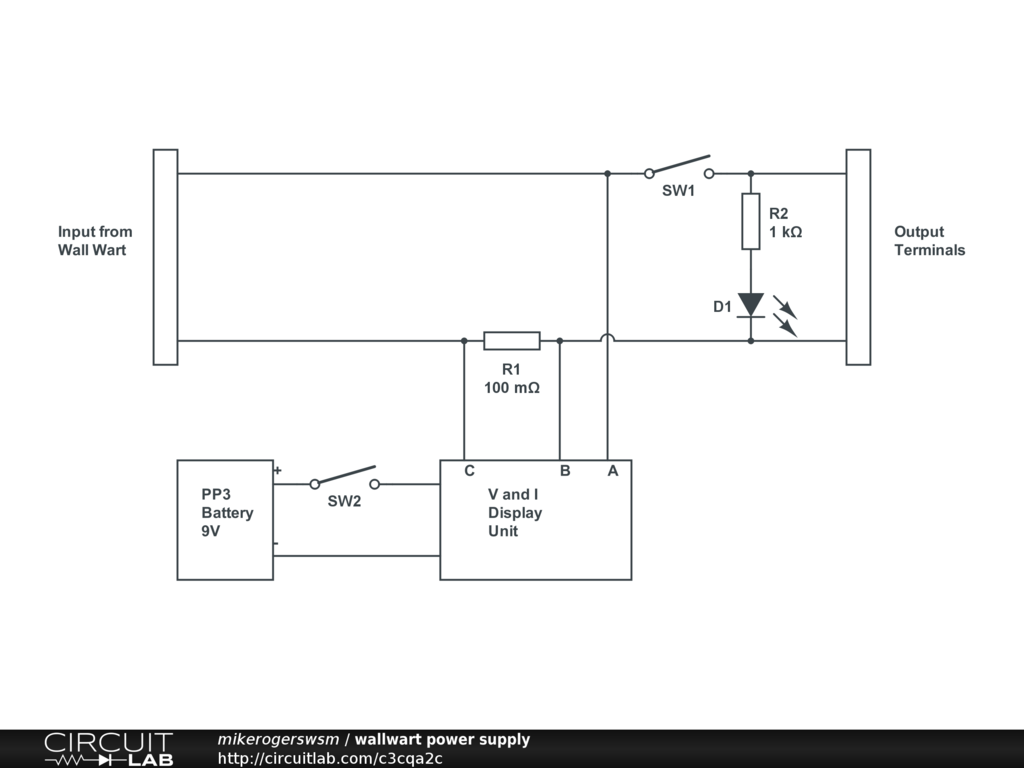

This is a mains powered (wall wart) supply with battery powered display of output voltage and current.
