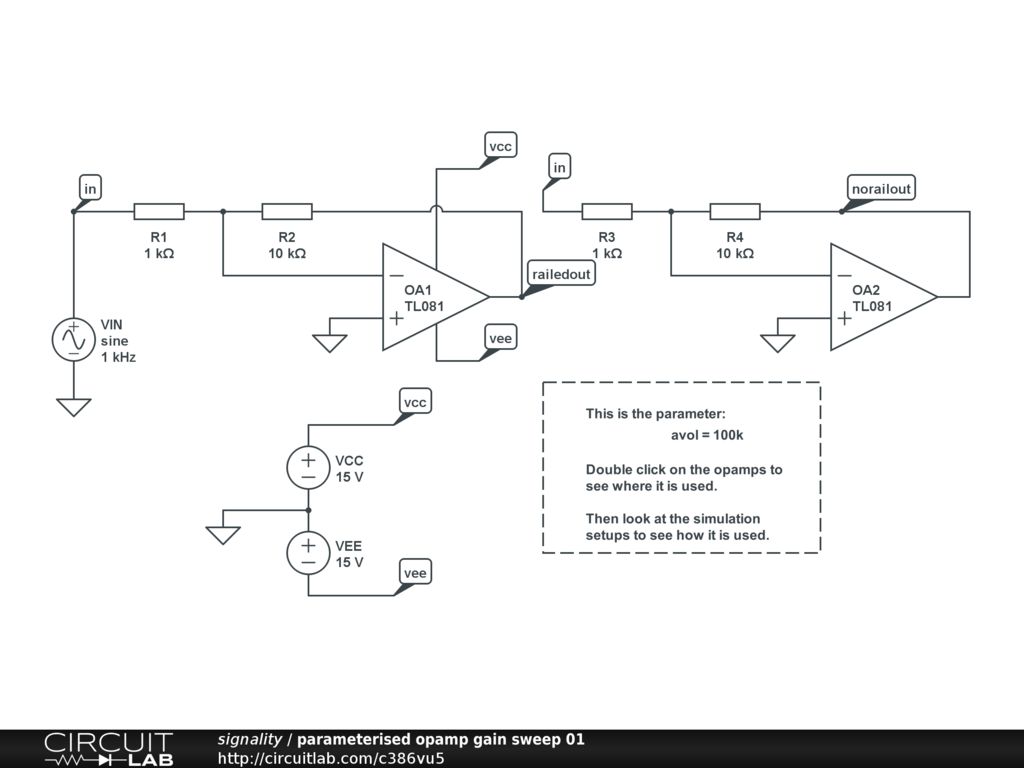

parameterised opamp gain sweep 01

Using a parameter to set and then sweep the open loop gain of an opamp.
