LED resistor sizing PUBLIC

Created by
Created February 15, 2021
Last modified February 28, 2021
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

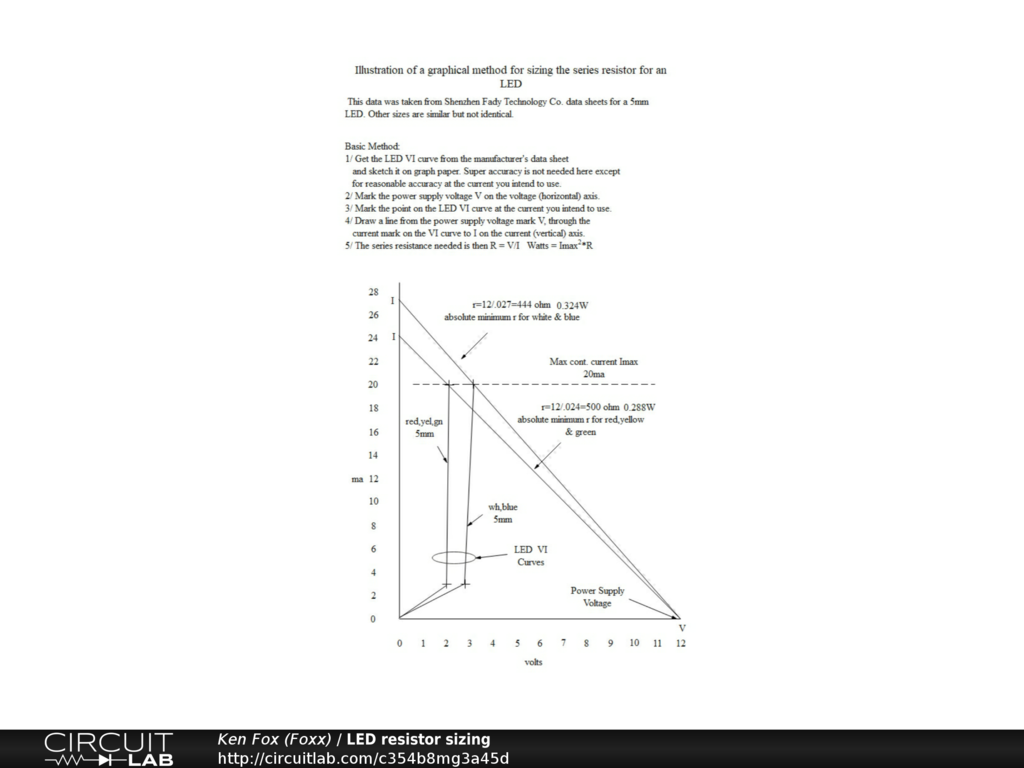

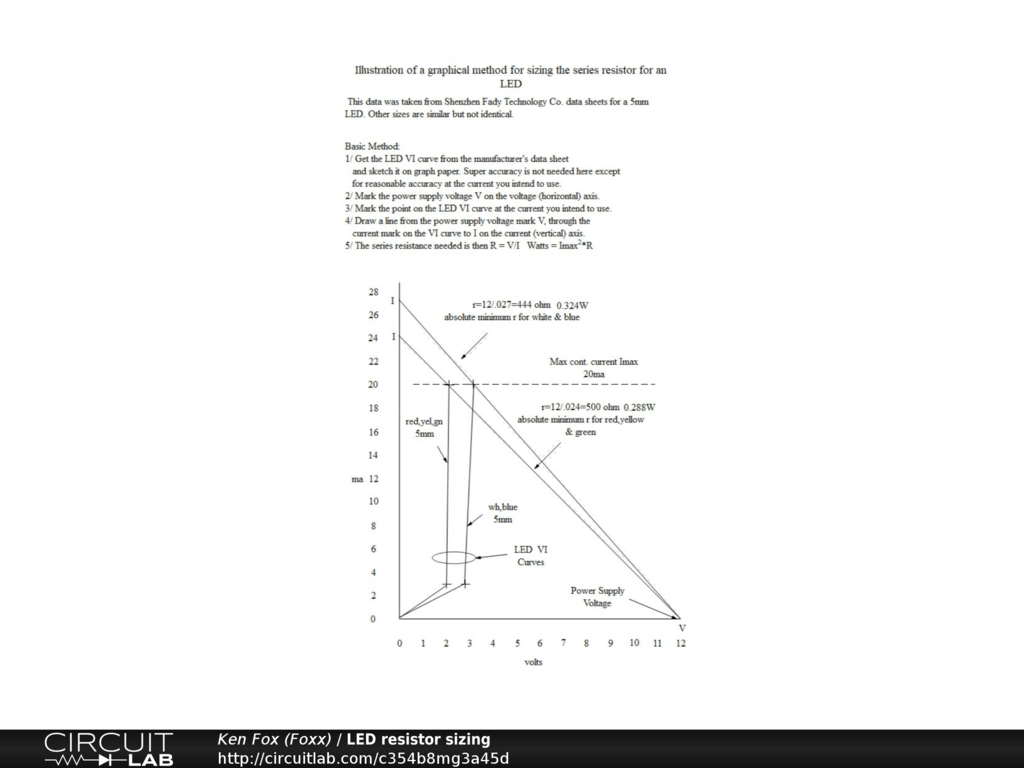

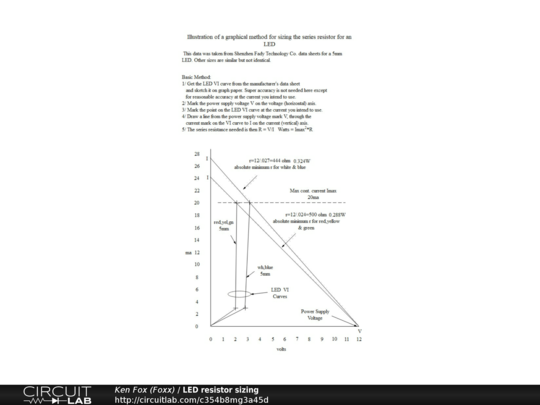

This not a circuit to be analyzed. It is a graphical method for sizing a series resistor for an LED (or any other non-linear load). All that is required for input is a VI curve for the LED and this need only be accurate in the region of the current to be used
