Multi-winding transformer 02

Created by	signality
Created	August 24, 2012
Last modified	August 24, 2012
Tags	behavioural-transformer coupled-inductors leakage-inductance multiwinding-transformer transformer

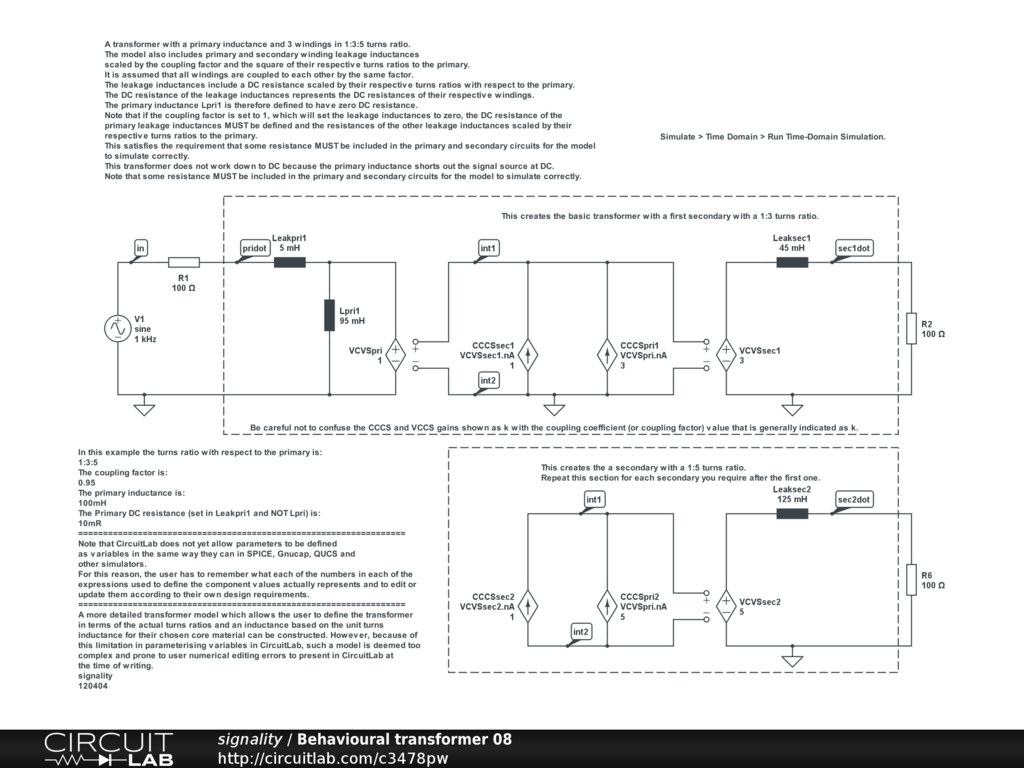

A transformer model with adjustable coupling between the inductors and the leakage inductances modelled appropriately.
