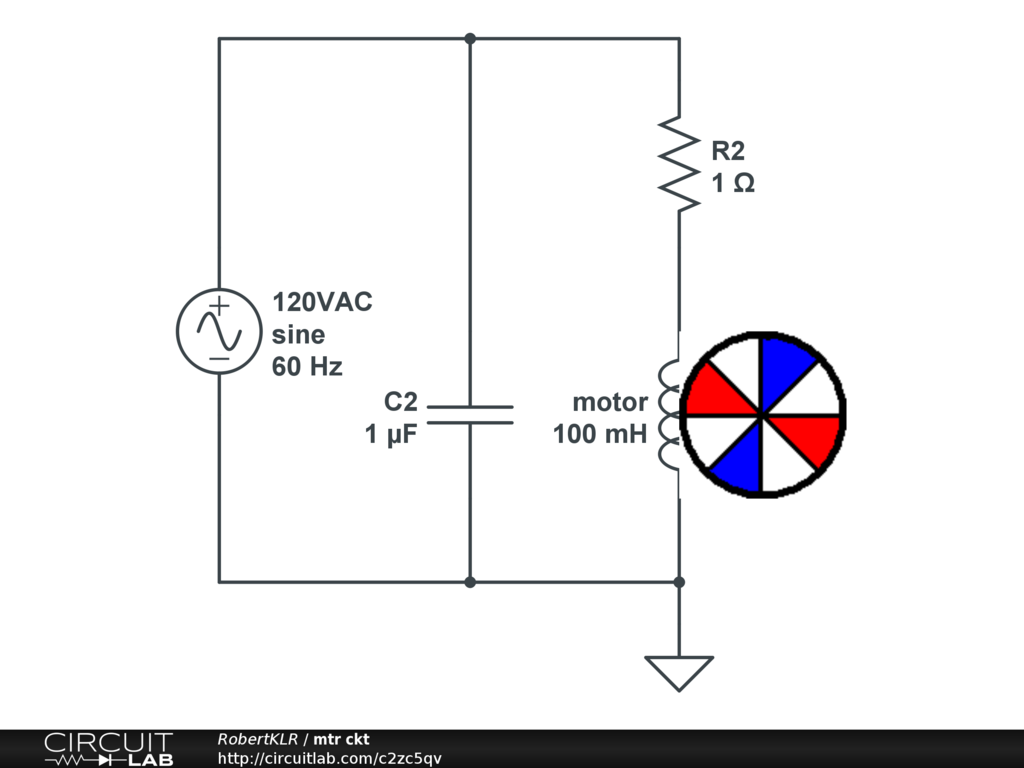

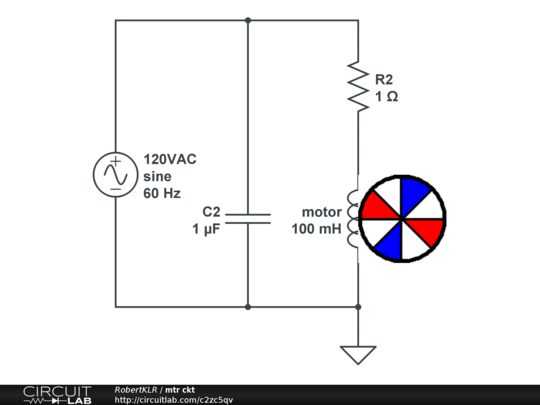

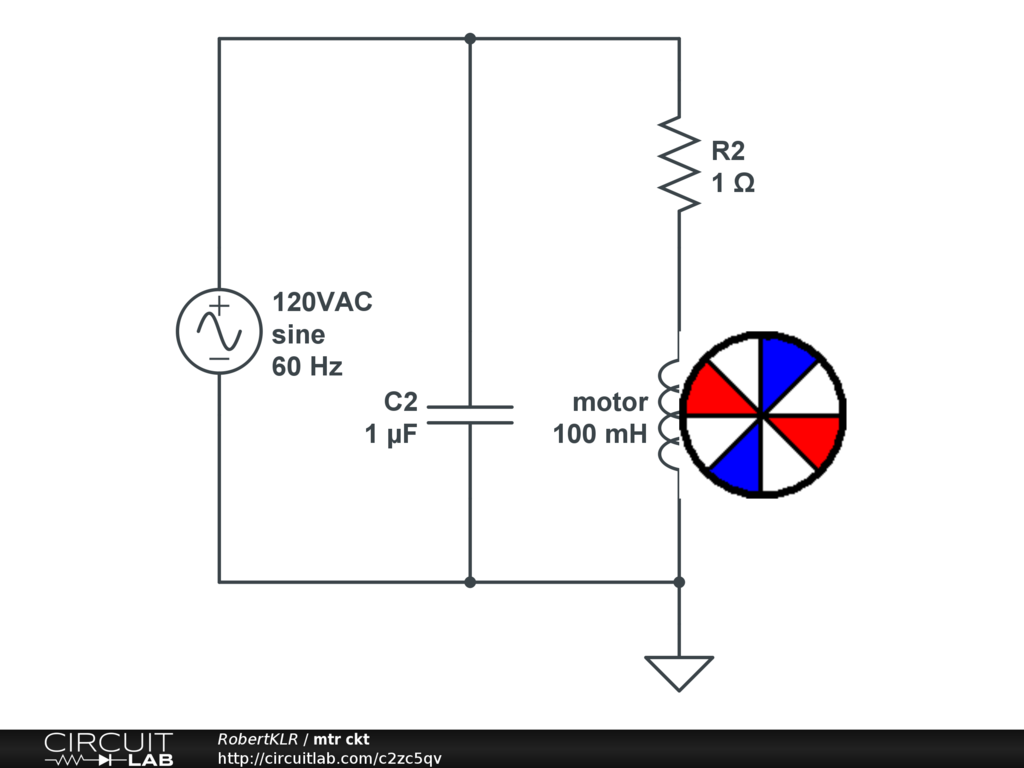

Simulates 120 vac induction motor "to some extent", (keep that in mind) at 30 and 60 Hz. I added a gif to represent motor. I was guessing at the motor capacitance and inductance. C2 is not a start capacitor but represents inter-winding capacitance and R2 is the DC winding resistance. Use Time Domain and sweep the power source frequency at 30 and 60 Hz. The lower frequency amperage is approximately twice the higher frequency's.
