P-MOSFET Buck Converter (Switching Power Supply) closed loop 01

Created by	signality
Created	August 02, 2012
Last modified	August 03, 2012
Tags	buck-converter power-supply smps step-down-converter switching voltage-mode

Basic closed loop 12V to 3V Voltage Mode Buck (step down) converter.
Simulate > Time Domain > Run Time-Domain Simulation

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

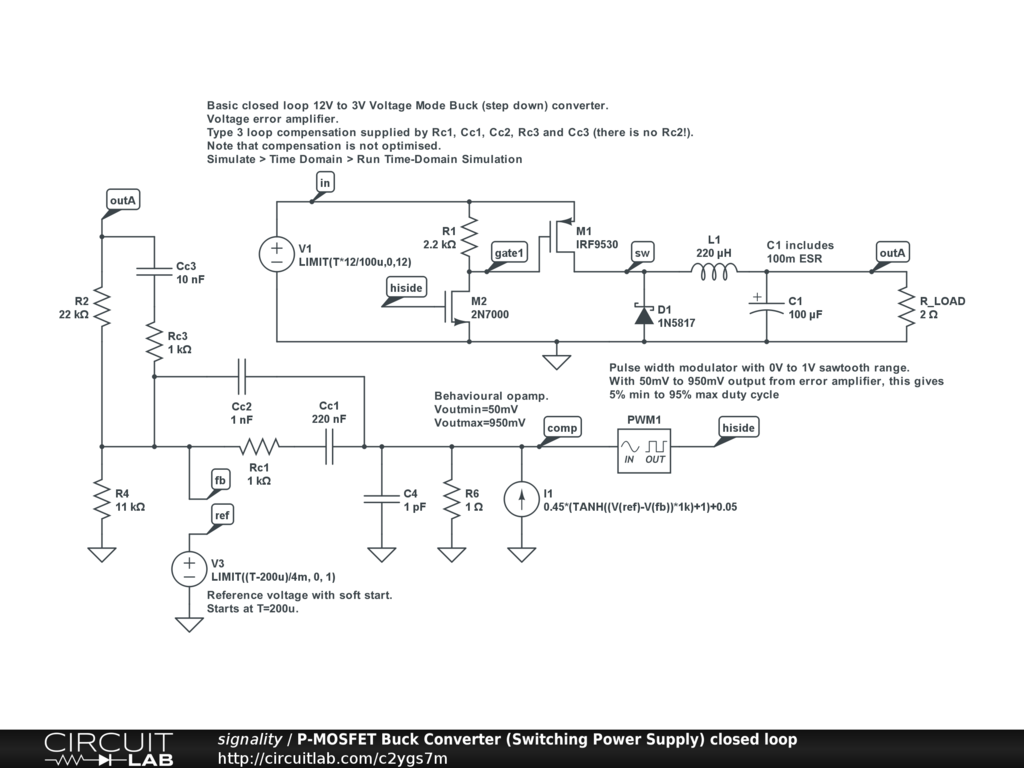

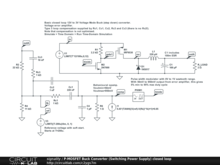

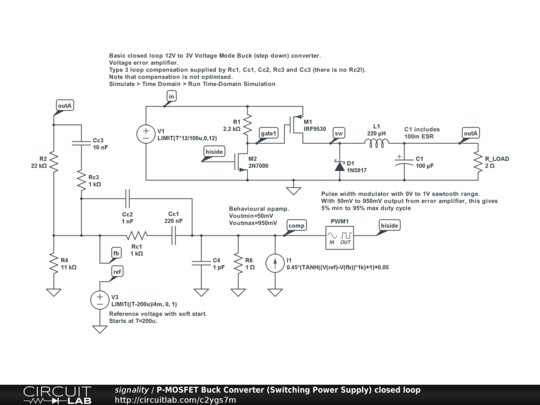

Basic closed loop 12V to 3V Voltage Mode Buck (step down) converter.

Based on:

but adds:

Voltage reference with soft start

Voltage error amplifier.

PWM (sawtooth generator and comparator)

Type 3 loop compensation supplied by Rc1, Cc1, Cc2, Rc3 and Cc3 (there is no Rc2!).

Note that compensation is not optimised.

Simulate > Time Domain > Run Time-Domain Simulation
