Summary

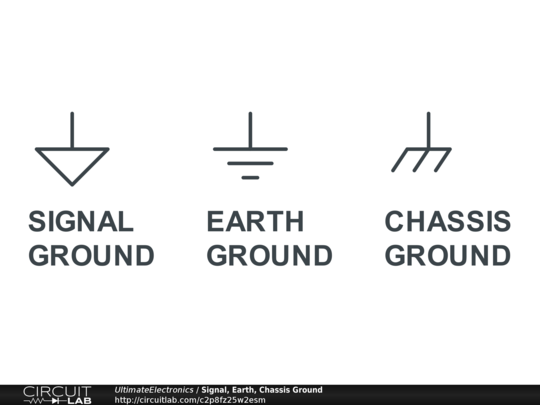

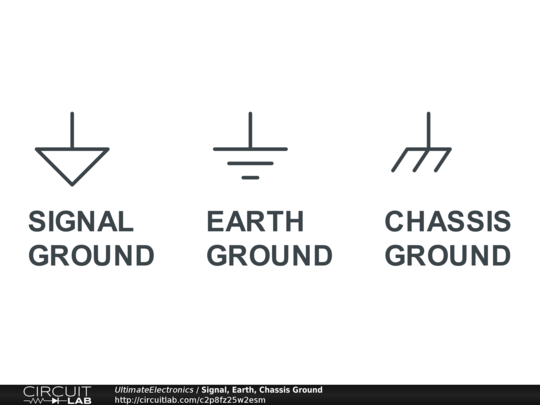

Signal ground, earth ground, and chassis ground are the three most common types of grounding connections you'll see on a schematic.


Description

This example is from the Ground chapter of Ultimate Electronics Book. It shows the three most common schematic symbols for different types of grounding connections.
