Emitter follower bug PUBLIC

Created by
Created September 30, 2020
Last modified September 30, 2020
Tags No tags.

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

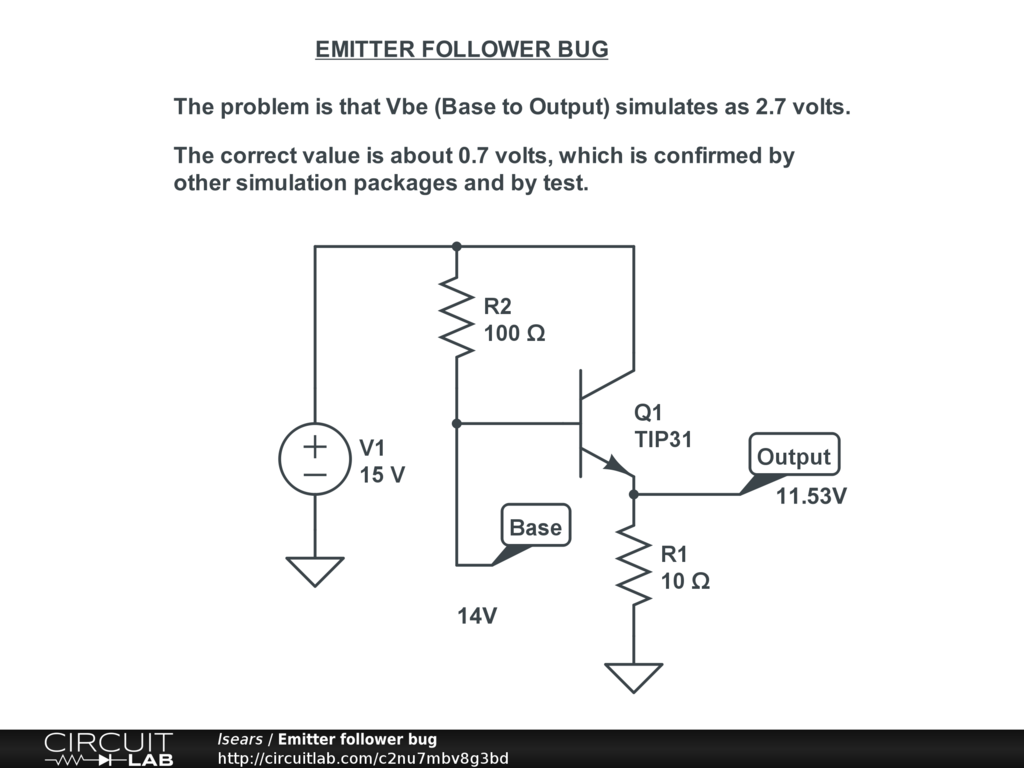

I've simulated in CircuitLab a few versions of this circuit, with different values and components; I always get similar results. I might be crazy, but I respectfully think there is a problem with the simulation. Any help or confirmation would be appreciated. Thank you.
