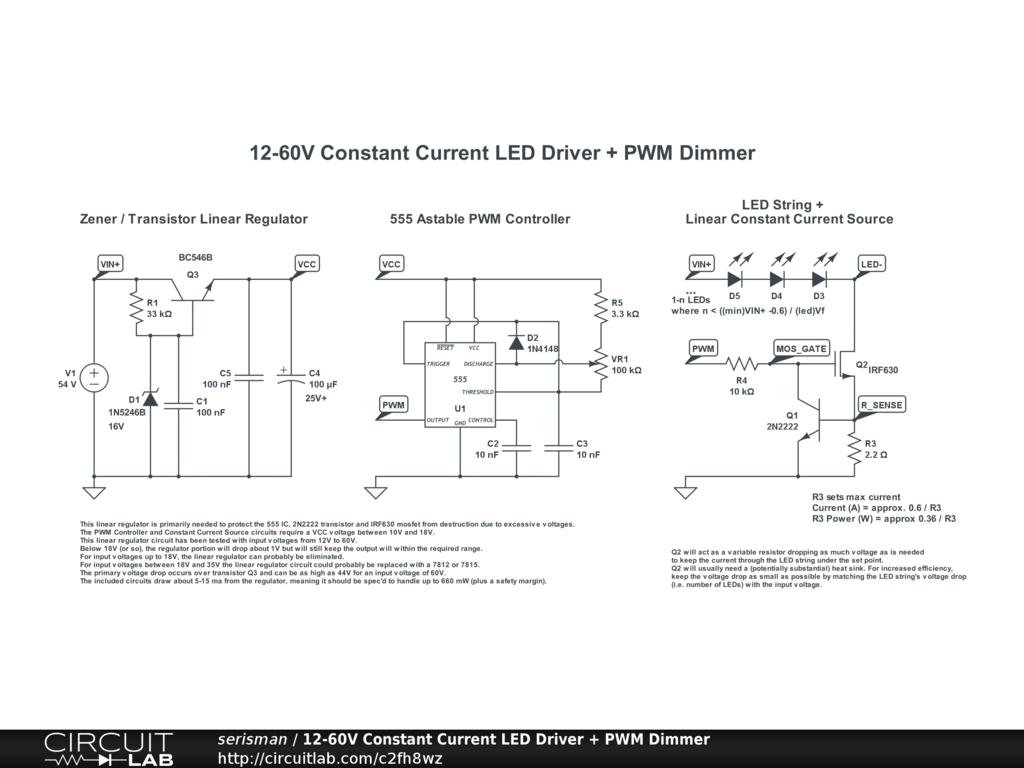

12-60V Constant Current LED Driver + PWM Dimmer PUBLIC

Created by
Created June 03, 2013
Last modified June 07, 2013
Tags 555   constant-current   led   led-driver   led-string   pwm

Summary

Not provided.

Link & Share

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):


CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor


Description

Not provided.
