PV 01

A single PV cell with an ideal ammeter plotting output vs. Rs.

Copy and paste the appropriate tags to share.

Schematic PNGs: (download or hot-link)
small, medium, large

Circuit URL (e-mail, IM, blog, etc.):

CircuitLab forums and comments:

BBCode (many online discussion forums):

Markdown:

HTML:

Open in editor

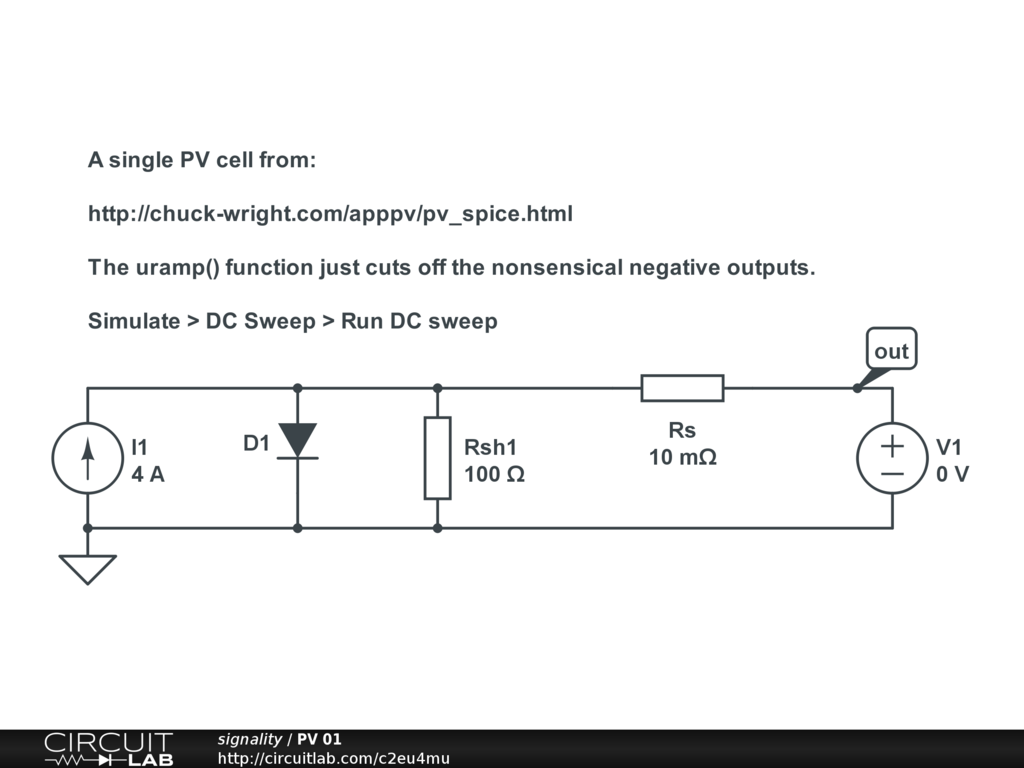

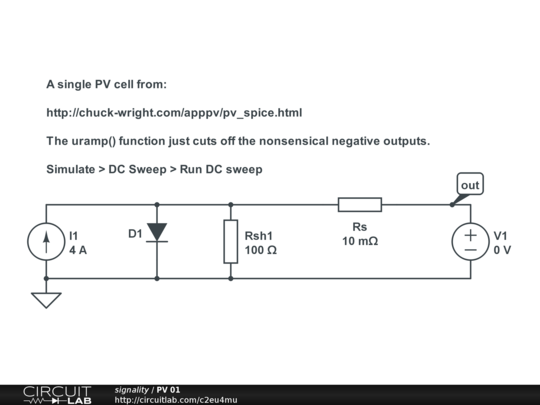

A single PV cell from:

V1 is used as an ideal ammeter and is not part of the PV cell.

The uramp() function just cuts off the nonsensical negative outputs.

For more on PV modelling see:

Simulate > DC Sweep > Run DC sweep
