19Khz Notch Filter

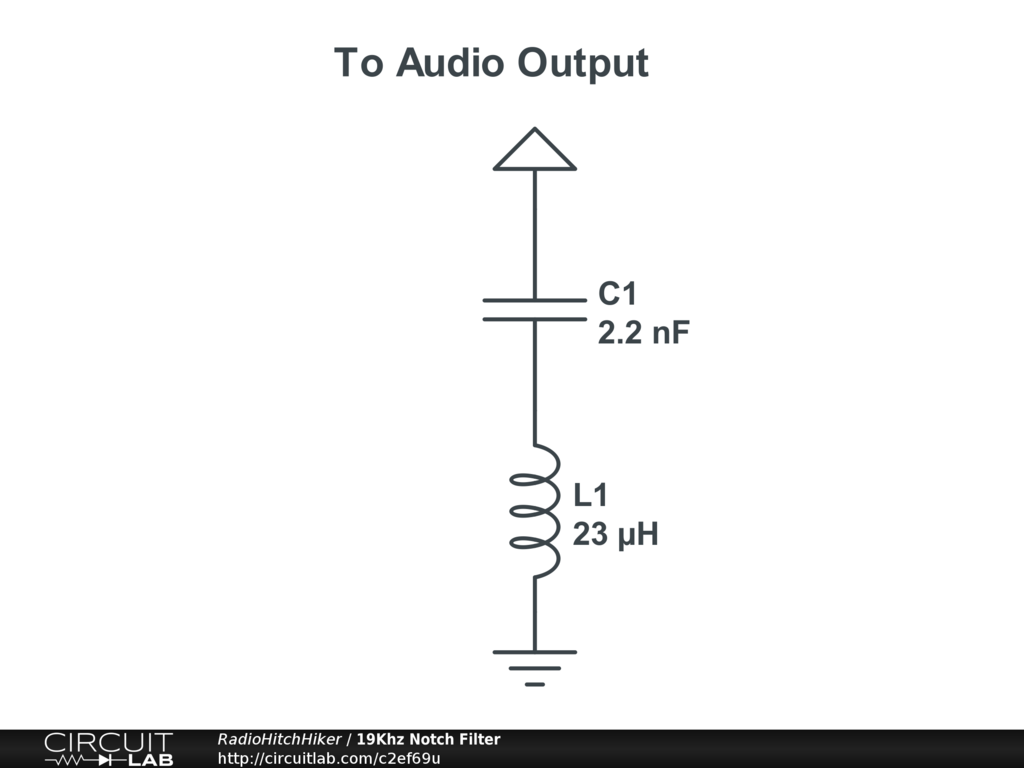

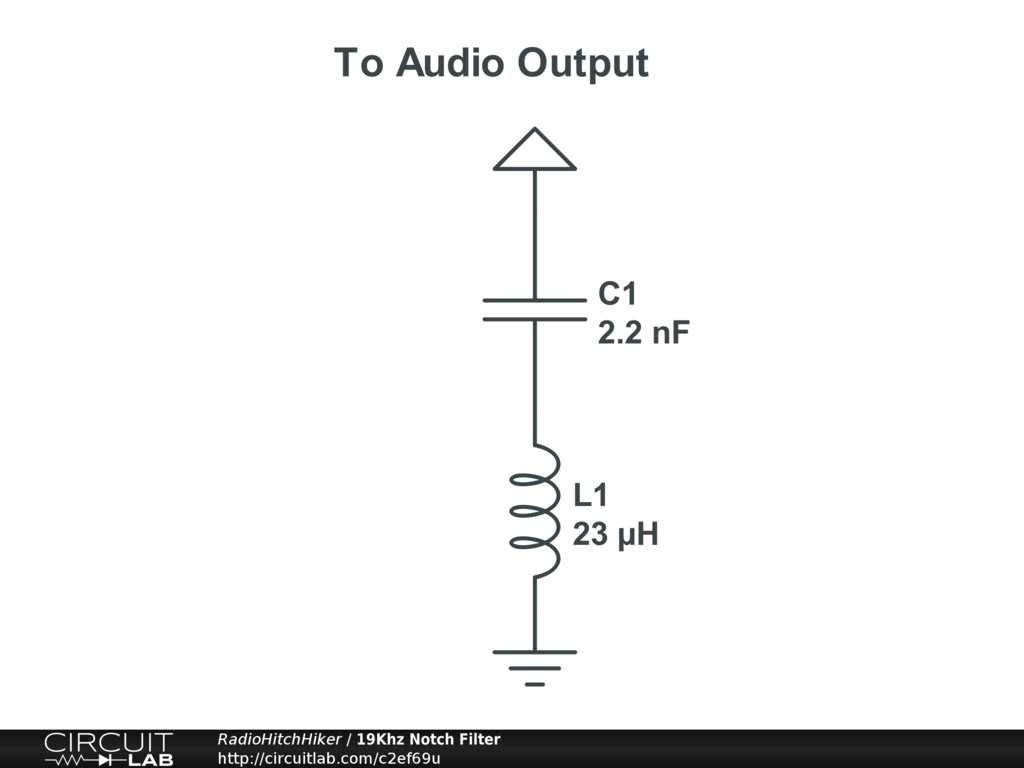

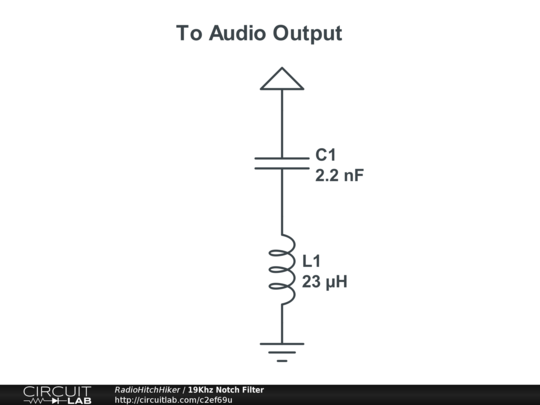

This circuit was used to block the stereo pilot from the audio output of an FM tuner that was passing the pilot.
