Electric Circuit As Temperature (ECAT).
Electric simulation of heat controlled heat-generating reaction (HCHR).

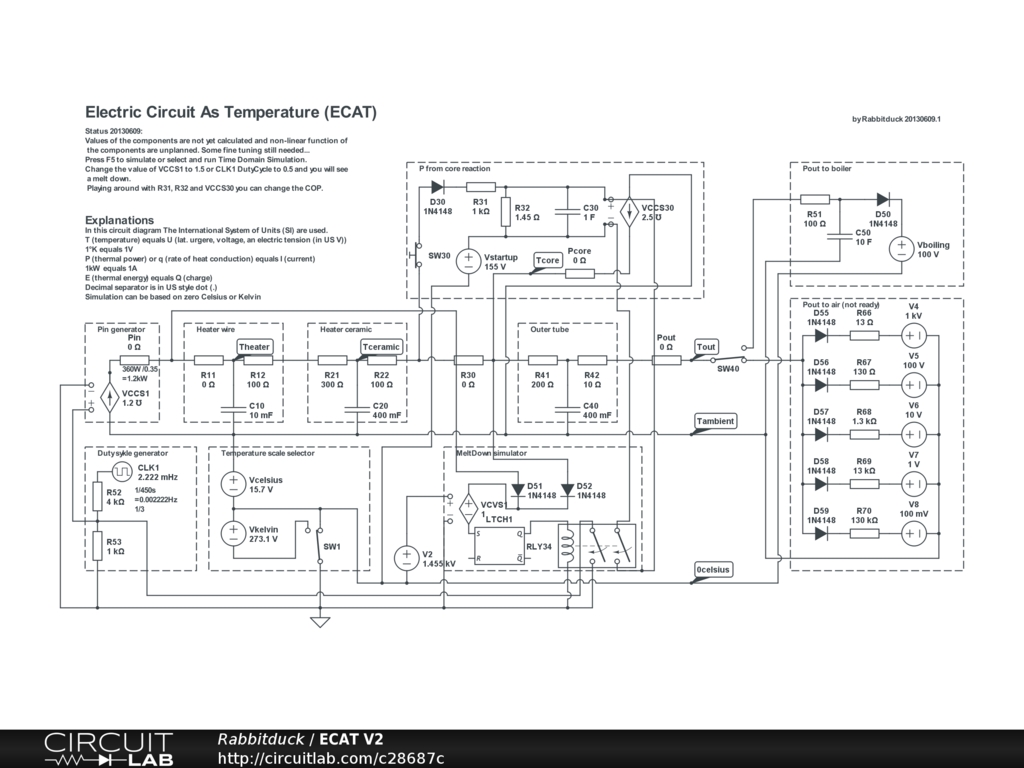

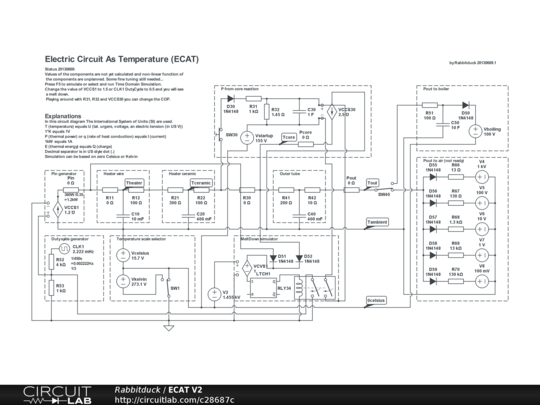

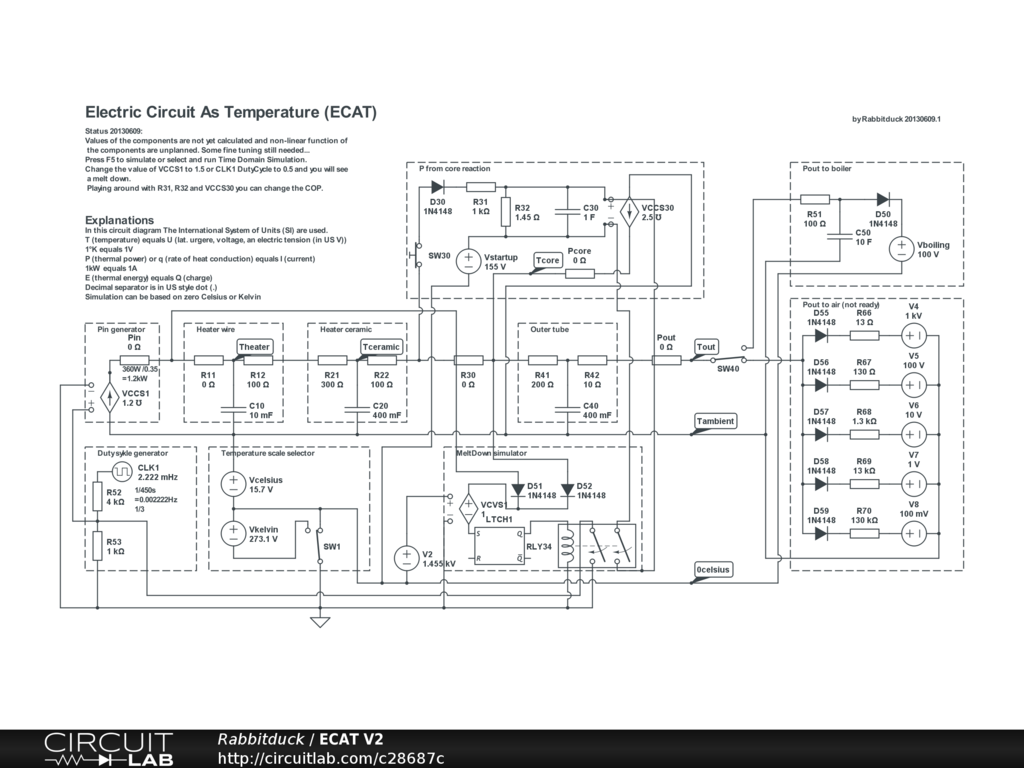

In this circuit diagram The International System of Units (SI) are used.

T (temperature) equals U (lat. urgere, voltage, an electric tension (in US V))

1°K equals 1V

P (thermal power) or q (rate of heat conduction) equals I (current)

1kW equals 1A

E (thermal energy) equals Q (charge)

Decimal separator is in US style dot (.)

Simulation can be based on zero Celsius or Kelvin

Stefan–Boltzmann calculation was to slow by using voltage multiply simulation so it is replaced diode, resistor, voltage source network (which accurate values are not yet calculated).
