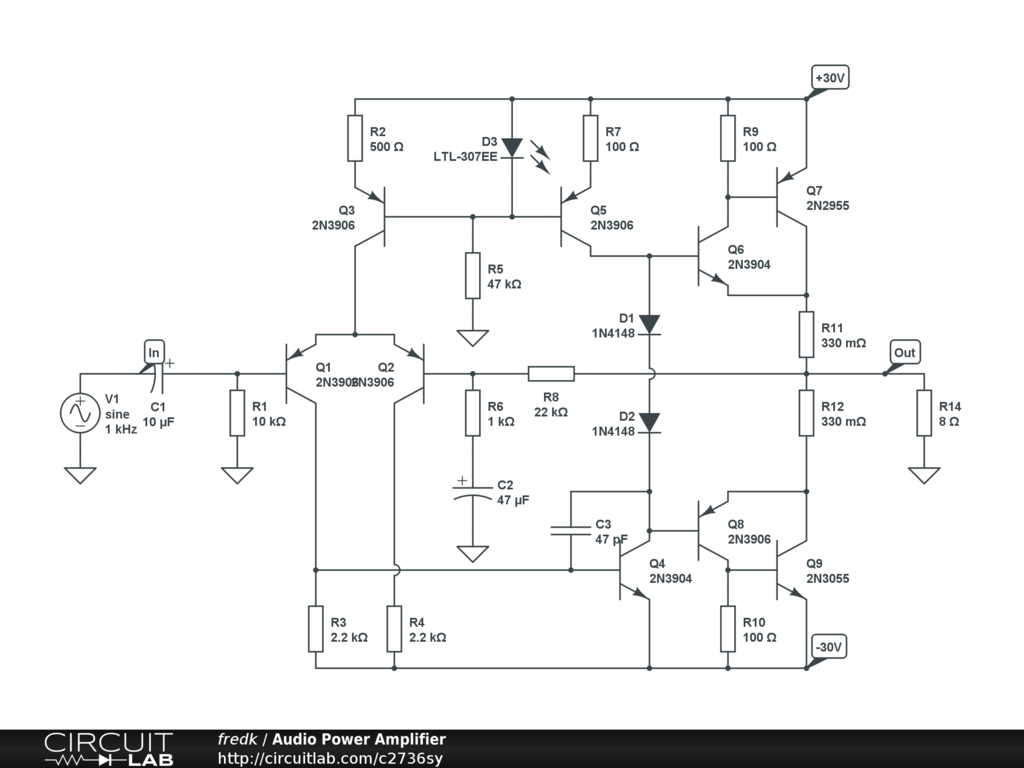

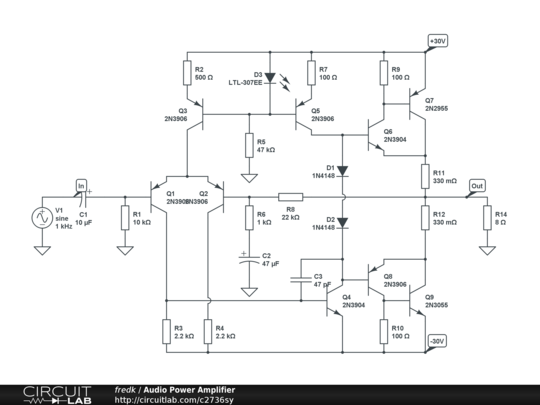

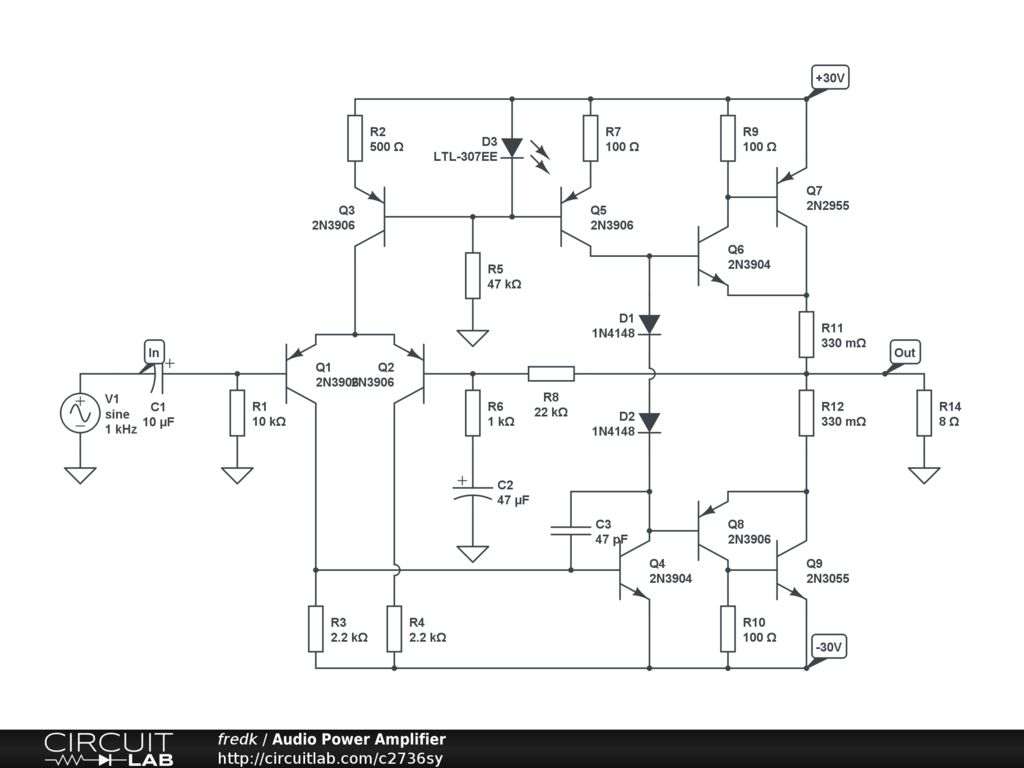

Simple Class B amp based on Douglas Selfs model amplifier featured in chapter 3 of his "Audio Power Amplifier Design Handbook"
