Load Cell Bridge Offset compensation

Created by	Christian Liljedahl (chrlilje)
Created	March 20, 2012
Last modified	March 20, 2012
Tags	compensation load-cell offset

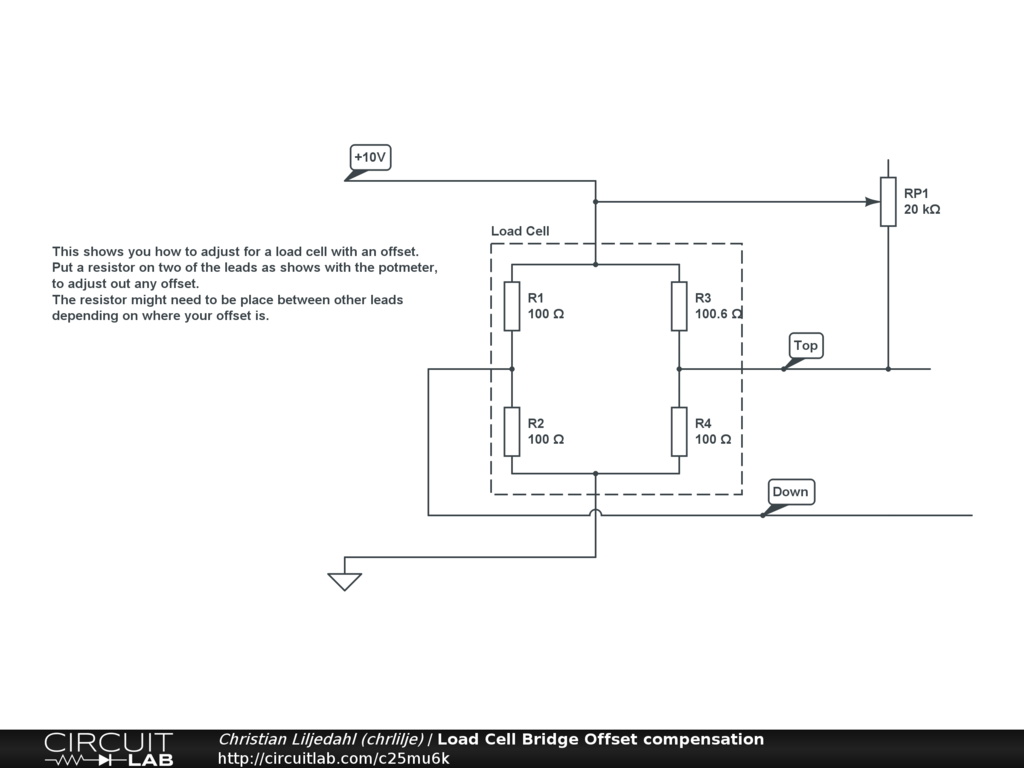

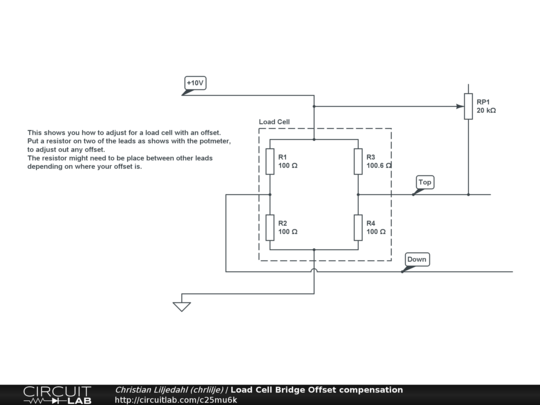

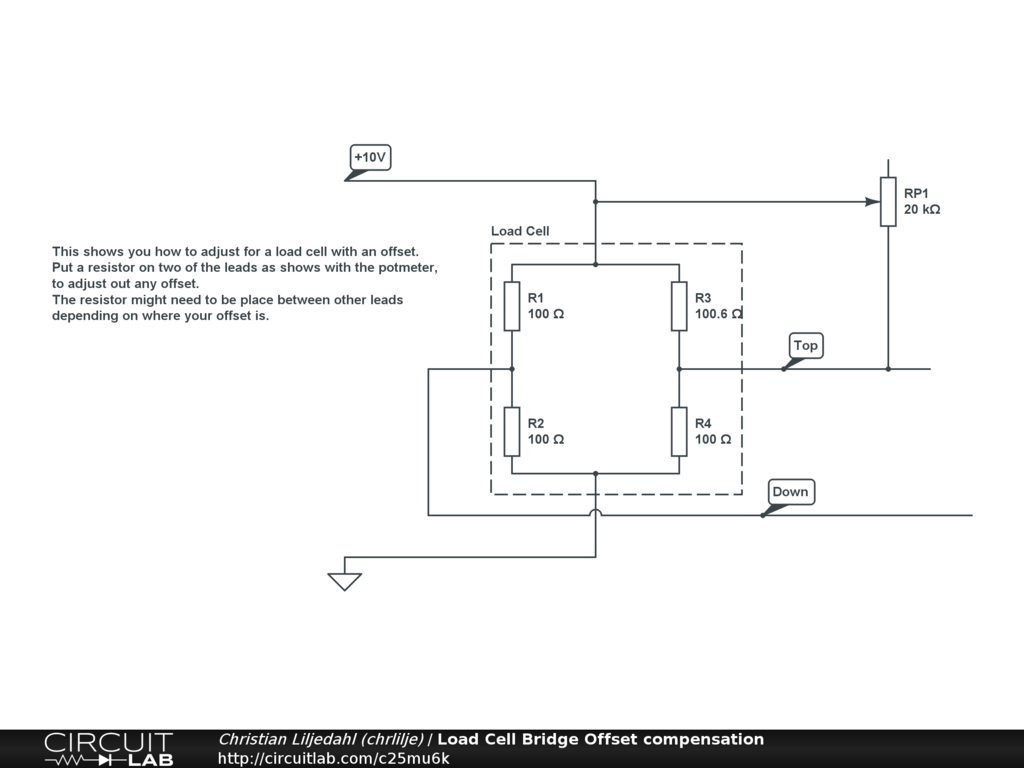

This circuit shows you how to compensate for a DC offset in the output of a resistor bridge like the one found in Load Cells.
