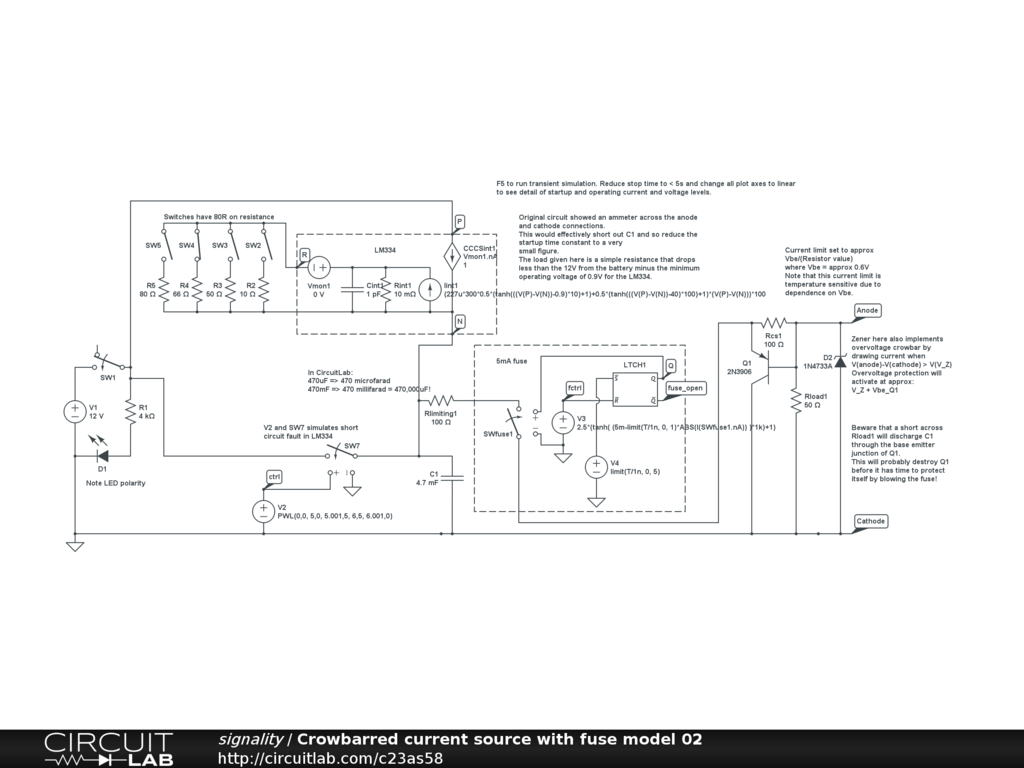

Crowbarred current source with fuse model 02

Same as "Crowbarred current source with fuse model" but with surge limiting resistor added between C1 and fuse.
