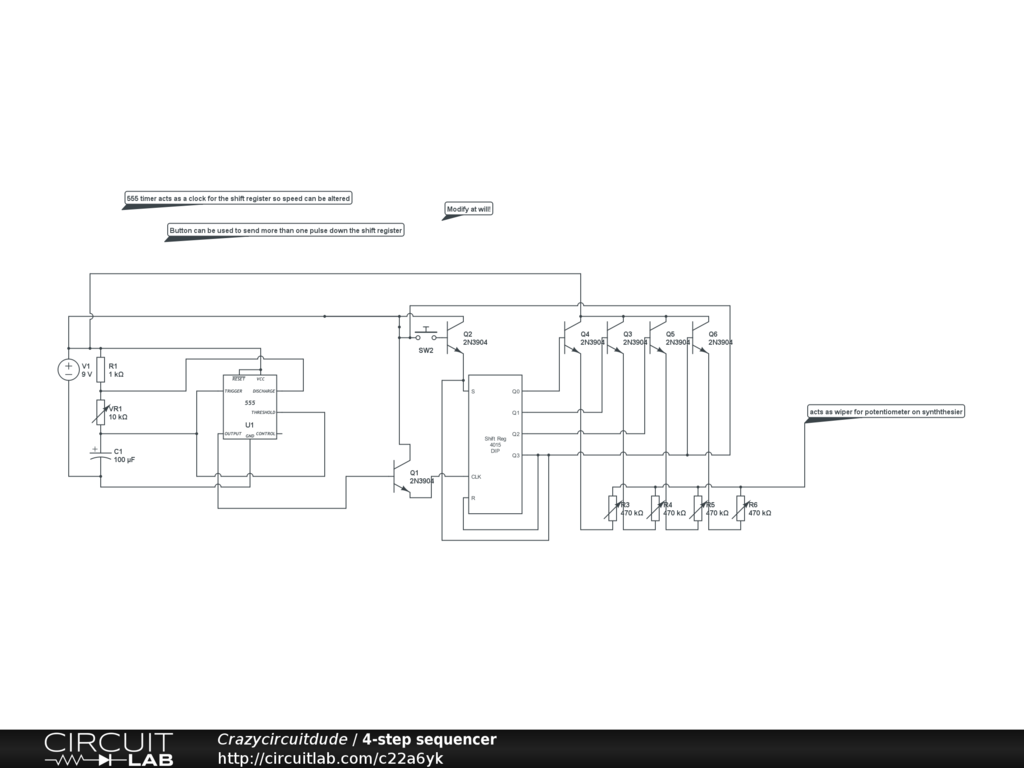

4-step sequencer for synthesiser

Created by	Crazycircuitdude
Created	May 05, 2013
Last modified	July 17, 2013
Tags	4-step edit-at-will for sequencer synth synthesiser

Originally desingned this for the APC(Atari Punk Console), but can be used with any synth using a potentiometer somewhere, simple but efficient
